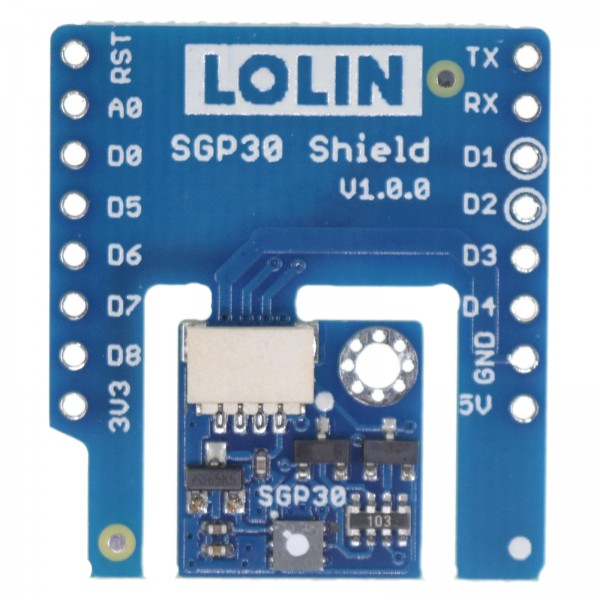

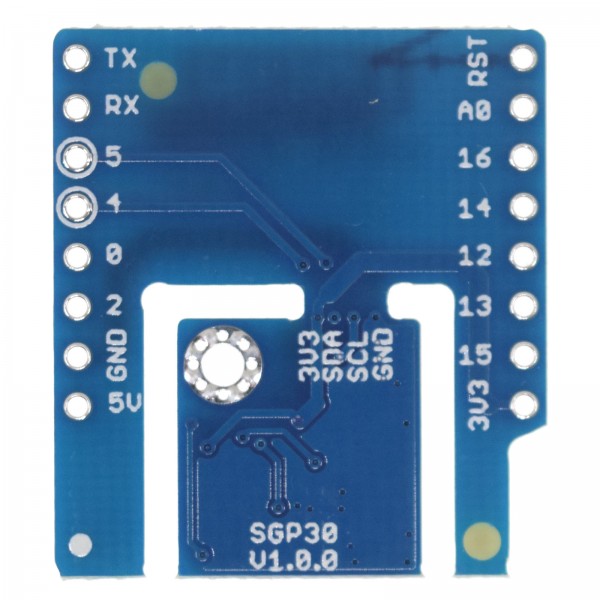

Wemos SGP30 TVOC and eCO2 Sensor Shield

A TVOC and eCO2 sensor module/shield for the Wemos D1 Mini. The module communicates via I2C.

Specifications:

• TVOC range: 0-60000ppb
• eCO2 range: 400-60000ppm
• Communication: I2C
• I2C address: 0x3C
• One 2mm mounting hole

For more information, see this page: SGP30 Shield

Pin headers are included with this shield.

Note: Because Wemos regularly improves its products, it may be that an older version is supplied than the one mentioned in the link above. Moreover, the pictures on our site might show an older version of the product we currently supply. If you want to know which version we currently have in stock, please contact us.
