Name: MemsFrontier MTP40-F CO2 Sensor - MF-MTP40-F
SKU: 004660
Price: 17.25 EUR
Availability: InStock

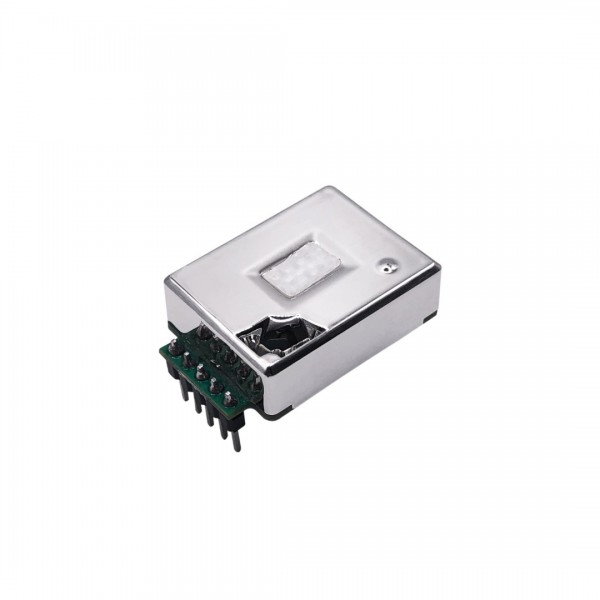

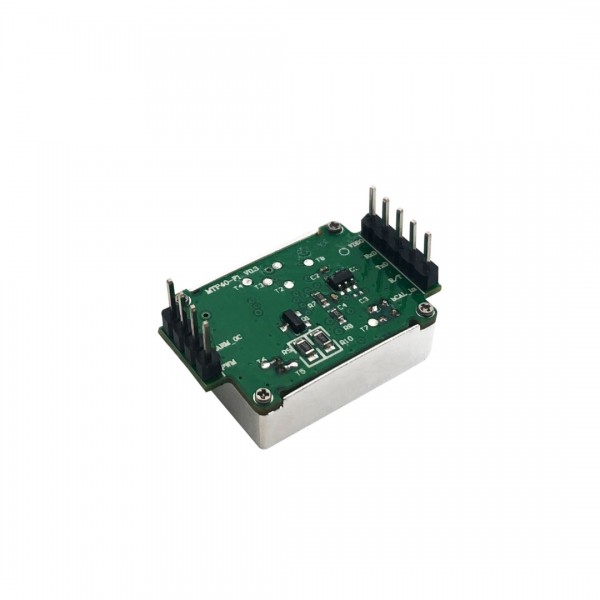

MemsFrontier MTP40-F CO2 Sensor

Based on 0 review(s) - Write a review

€17.25

Ex Tax: €14.26

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

This CO2 sensor can very accurately measure the amount of carbon dioxide with the non-dispersive infrared principle (NDIR).

See the following page for an Arduino library for this sensor: MTP40F

Note: Soldering headers may affect calibration.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: MemsFrontier MTP40-F CO2 Sensor , MF-MTP40-F , Gas

General
Brand	MemsFrontier
Manufacturer model/SKU	MTP40-F
Minimum operating humidity [%R.H.]	0
Maximum operating humidity [%R.H.]	90
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	50
Features	Gas sensor
General physical appearance
Main color	Gray/silver
Weight [g]	5
Dimension X [mm]	33
Dimension Y [mm]	20
Dimension Z [mm]	8.5
Mounting options	Pin headers
Form factor	Module (general)
Experiment PCB friendly	No
General electrical properties
Minimum supply voltage [V DC]	4.2
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C PWM UART
Default baudrate	9600
Default I2C address	0x32
Adjustable I2C address	No
Gassensor
Sensor (chip)	MTP40-F
Measurable gasses	Carbon dioxide O2
Output type	Exact
Minimum measuring range [ppm]	400
Maximum measuring range [ppm]	2000
Smallest resolution [ppm]	1
Accuracy [ppm]	30
Accuracy [%]	3
Maximum measuring frequency [Hz]	0.5
Connectors
Power supply connector(s)	Pin header male (2.54mm) (Note: Soldering headers may affect calibration)
IO-connector(s)	Pin header male (2.54mm) (Note: Soldering headers may affect calibration)
Package contents
Package contents	1x MTP40-F
