M5Stack MQ Unit - MQ-5 Combustable Gas Sensor

M5Stack MQ Unit - MQ-5 Combustable Gas Sensor
M5Stack MQ Unit - MQ-5 Combustable Gas Sensor
M5Stack MQ Unit - MQ-5 Combustable Gas Sensor
M5Stack MQ Unit - MQ-5 Combustable Gas Sensor
M5Stack MQ Unit - MQ-5 Combustable Gas Sensor
M5Stack MQ Unit - MQ-5 Combustable Gas Sensor
M5Stack MQ Unit - MQ-5 Combustable Gas Sensor
M5Stack MQ Unit - MQ-5 Combustable Gas Sensor
M5Stack MQ Unit - MQ-5 Combustable Gas Sensor
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007378
Based on 0 review(s) - Write a review
€8.00
Ex Tax: €6.61
Add to Cart
Add to wishlist

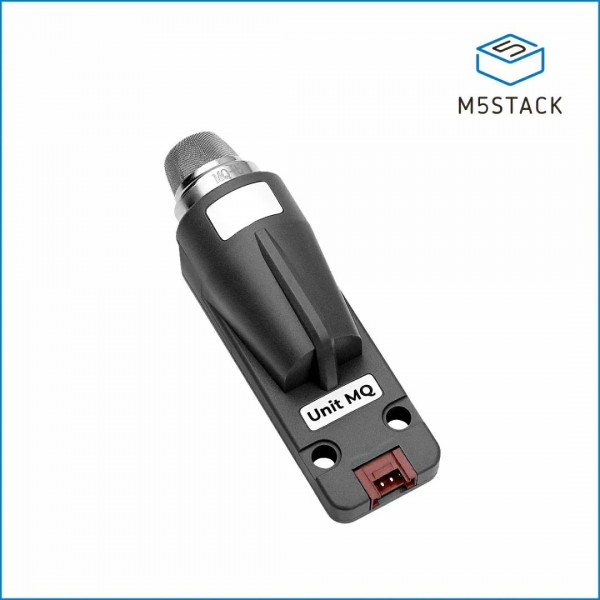

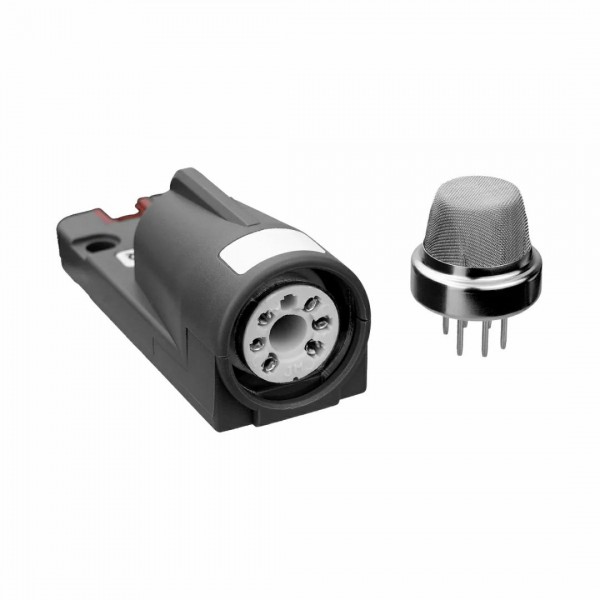

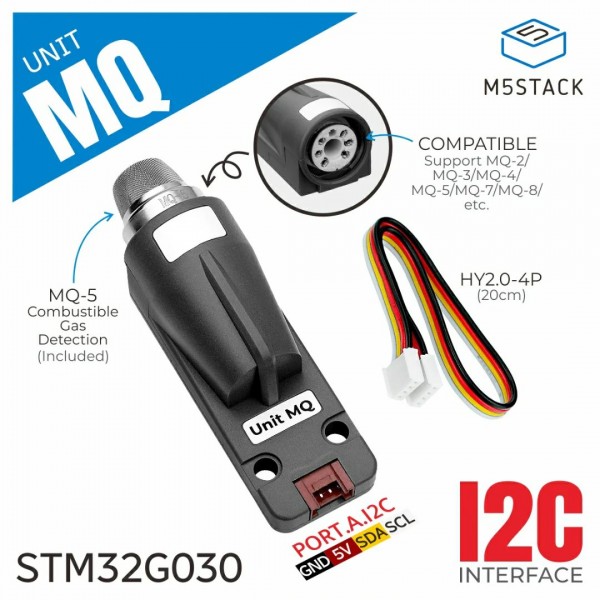

The MQ-5 Gas Sensor Module is a compact gas sensor that utilizes the MQ-5 sensor. It detects various combustible gases such as LPG, methane, and propane. The module contains a separate microcontroller that reads out the MQ-5. This microcontroller can then be read via I2C.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack MQ Unit - MQ-5 Combustable Gas Sensor

This product has 0 review(s) in total.

Tags: Air , Gas , M5Stack MQ Unit - MQ-5 Combustable Gas Sensor , 007378 , M5Stack , U199 , Gas sensor , I2C

Specifications

General
Brand M5Stack
Manufacturer model/SKU U199
Features Gas sensor
General physical appearance
Main color Gray/silver
Weight [g] 20
Dimension X [mm] 80
Dimension Y [mm] 24
Dimension Z [mm] 25
Mounting options LEGO (compatible) holes
Form factor M5Stack Unit
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Default I2C address 0x11
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] 4.7
Gassensor
Sensor (chip) MQ-5
Measurable gasses LPG
Methane CH4
Propane C3H8
Ethanol C2H5OH
Combustable gasses (general)
Output type Indicative
Minimum measuring range [ppm] 300
Maximum measuring range [ppm] 10000
Minimum pre-heat time [h] 48
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Package contents
Package contents 1x Grove female cable
1x MQ Unit
