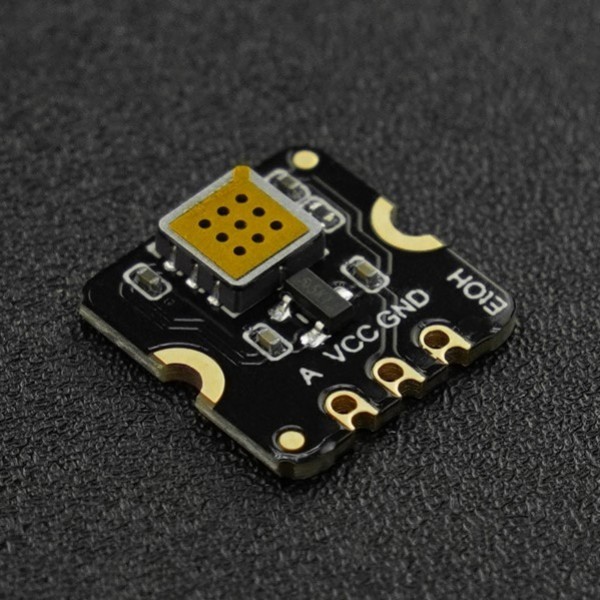

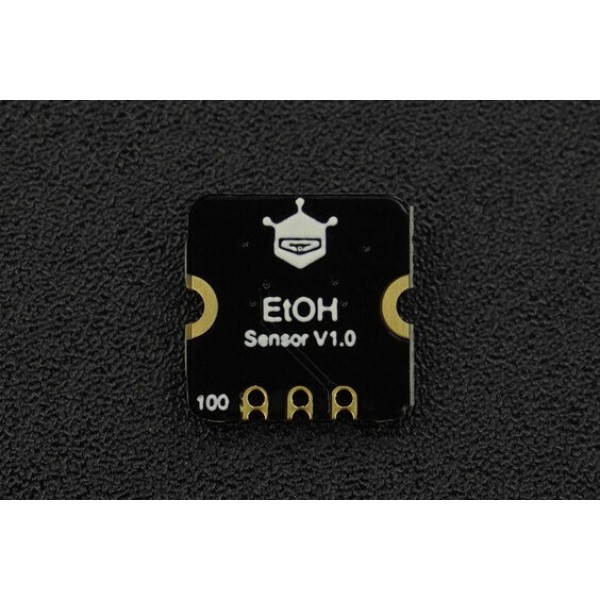

DFRobot Fermion MEMS Ethanol EtOH Gas Detection Sensor
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005563
€6.00
Ex Tax: €4.96
Your shopping cart is empty!
A gas sensor based on MEMS technology.
Note: When first using the sensor, it needs to stabilize for a few days to give stable readings (see datasheet for exact time). In addition, we recommend letting the sensor warm up for 5 minutes if the power has been (briefly) cut off to obtain stable readings.
See the following page for more information: Wiki
Check the tab "Downloads" for more information and/or downloads.
This product has 0 review(s) in total.
Datasheet: 005563_GM-302B-EtOH-datasheet.pdf
| General | |
| Brand | DFRobot |
| Manufacturer model/SKU | SEN0569 |
| Minimum operating humidity [%R.H.] | 15 |
| Maximum operating humidity [%R.H.] | 50 |
| Minimum operating temperature [°C] | -10 |
| Maximum operating temperature [°C] | 50 |
| Features | Gas sensor |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 1 |

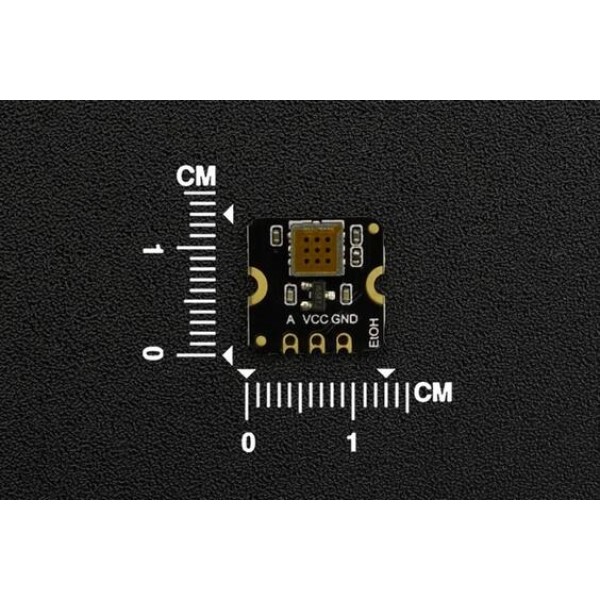

| Dimension X [mm] | 13 |
| Dimension Y [mm] | 13 |
| Mounting options | SMT |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 5 |
| IO-pin output voltage [V] | Equal to supply voltage |
| Communication | |
| Hardware interface(s) | Analog |
| Gassensor | |
| Sensor (chip) | GM-302B |
| Measurable gasses | Ethanol C2H5OH |
| Output type | Indicative |
| Minimum measuring range [ppm] | 1 |
| Maximum measuring range [ppm] | 500 |
| Minimum pre-heat time [s] | 300 |
| Connectors | |
| Power supply connector(s) | Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm) |
| Package contents | |

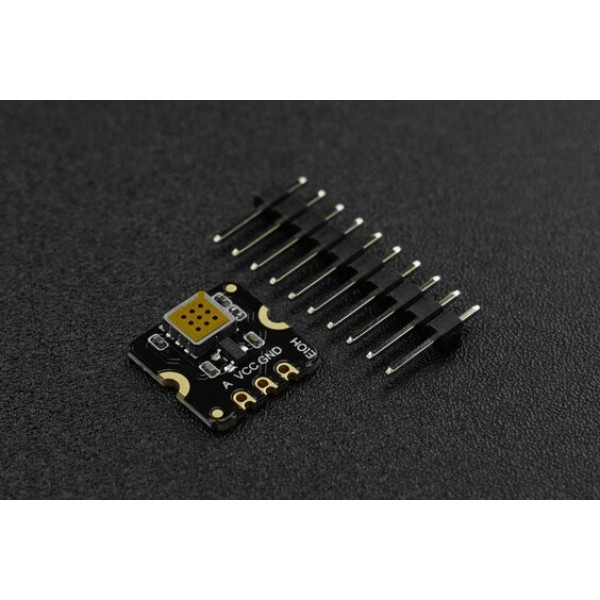

| Package contents | 1x Gas sensor 1x Male pin header 3p |
