Name: Sensirion SPS30 Particulate Matter Sensor - SPS30
SKU: 004742
Price: 38.5 EUR
Availability: InStock

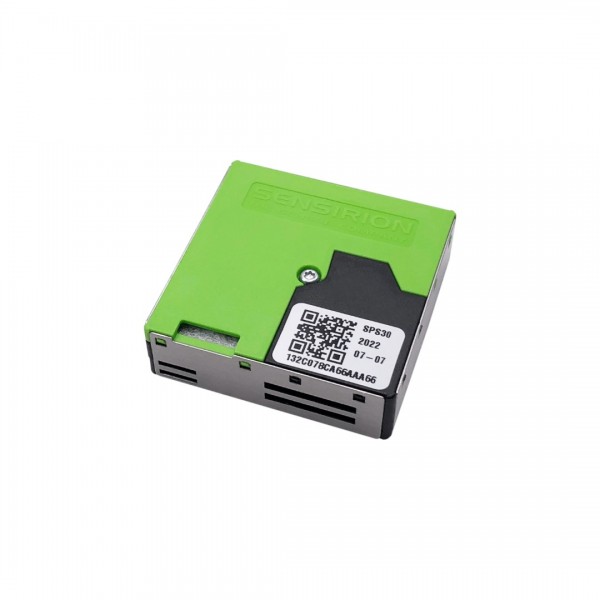

Sensirion SPS30 Particulate Matter Sensor

Based on 0 review(s) - Write a review

€38.50

Ex Tax: €31.82

10 or more €38.00

20 or more €37.50

50 or more €37.00

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A particulate matter sensor that can measure both the mass concentration of particles and the number of particles per unit volume.

Note: No cable is included, this can be ordered separately: JST-ZHR 5p to DuPont Female Compatible Cable

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Sensirion SPS30 Particulate Matter Sensor , SPS30 , Dust

General
Brand	Sensirion
Manufacturer model/SKU	SPS30
Minimum operating humidity [%R.H.]	0
Maximum operating humidity [%R.H.]	95
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	60
Features	Particulate matter sensor
General physical appearance
Main color	Green
Weight [g]	27
Dimension X [mm]	41
Dimension Y [mm]	41
Dimension Z [mm]	12
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	4.5
Maximum supply voltage [V DC]	5.5
Indication average current consumption [mA]	60
Indication (deep-)sleep current [μA]	8000
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5.5
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C UART (UART recommended)
Default baudrate	115200
Default I2C address	0x69
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	None (not needed for UART)
Particulate matter sensor
Sensor (chip)	SPS30
Output concentration(s)	PM1 PM10 PM4
Minimum particle size [μm]	0.3
Minimum measuring range [mg/m³]	0.0
Maximum measuring range [mg/m³]	1.0
Smallest resolution [μg/m³]	1.0
Accuracy [±μg/m³]	10 (0-100μg/m³, see datasheet for details)
Accuracy [%]	10 (100-1000μg/m³, see datasheet for details)
Minimum measuring range [1/cm³]	0
Maximum measuring range [1/cm³]	3000
Connectors
Power supply connector(s)	JST-ZH (compatible) male
IO-connector(s)	JST-ZH (compatible) male
Package contents
Package contents	1x SPS30 module
