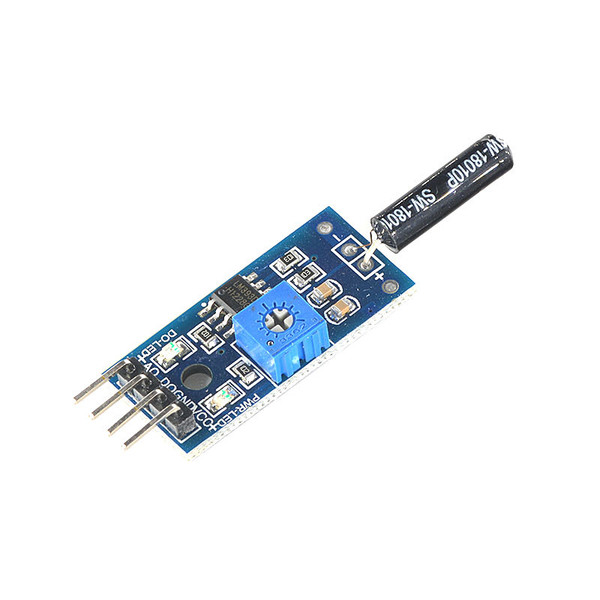

Vibration Sensor Module - 3.3-5V - SW-18010P

This module can detect vibration. In the black component on the module there is a spiral that touches the casing with a vibration on the component.
The sensitivity can be set with the potentiometer.

Pin description:

• VCC: 3.3-5V DC
• GND: min/ground/gnd
• DO: digital output (sensitivity can be controlled with the potentiometer)
• AO: analog output

For more specifications of the SW-18010P vibration sensor, see the datasheet under the tab "Downloads".

Check the tab "Downloads" for more information and/or downloads.
