Name: DFRobot Gravity I2C Triple Axis Accelerometer - LIS2DH12 - DFROBOT-SEN0224
Brand: DFRobot
SKU: 006007
Price: 6 EUR
Availability: InStock

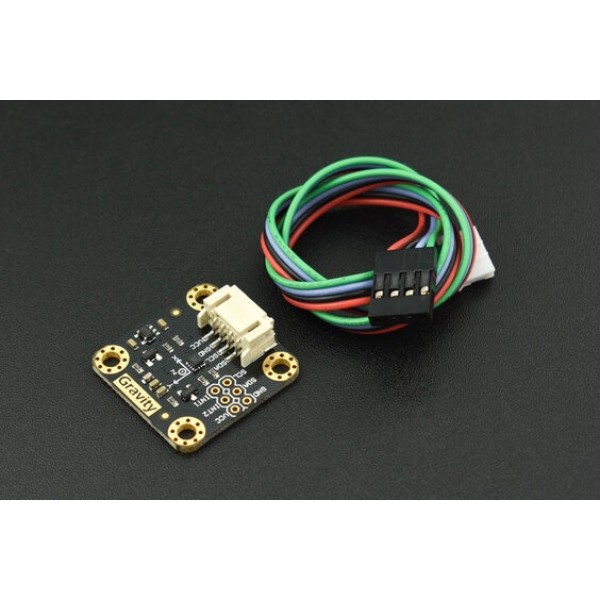

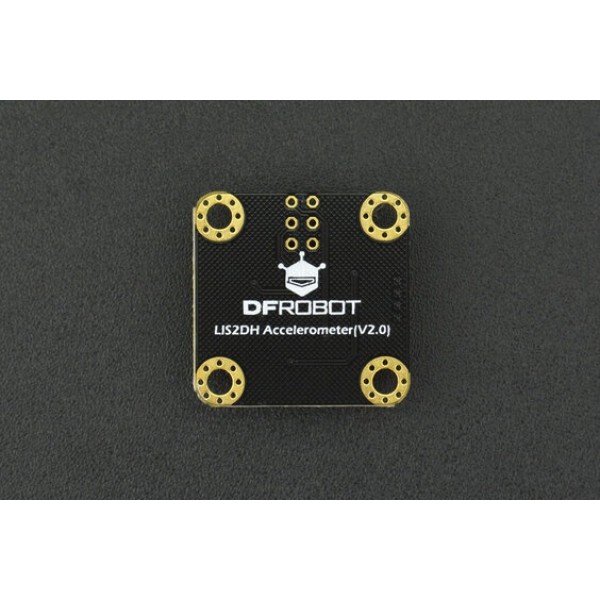

DFRobot Gravity I2C Triple Axis Accelerometer - LIS2DH12

Availability: Directly available from warehouse in Eindhoven
SKU: 006007

Based on 0 review(s) - Write a review

€6.00

Ex Tax: €4.96

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

A compact accelerometer from DFRobot.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity I2C Triple Axis Accelerometer - LIS2DH12

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Gravity I2C Triple Axis Accelerometer - LIS2DH12 , DFROBOT-SEN0224 , Acceleration-Rotation

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	SEN0224
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Acceleration sensor
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	26
Dimension Y [mm]	26
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	I2C
Default I2C address	0x18
Adjustable I2C address	Yes (to 0x19)
Built-in pull-up resistor(s) [kΩ]	10
Acceleration sensor
Sensor chip/SoC	LIS2DH12
Degrees of freedom (DOF)	3
Maximum measuring range [±g]	16
Maximum resolution [bit]	12
Connectors
Power supply connector(s)	JST-PH (compatible) male Through hole solder pin(s) (2.54mm)
IO-connector(s)	JST-PH (compatible) male Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x JST-PH to DuPont female cable 1x Acceleration sensor module
