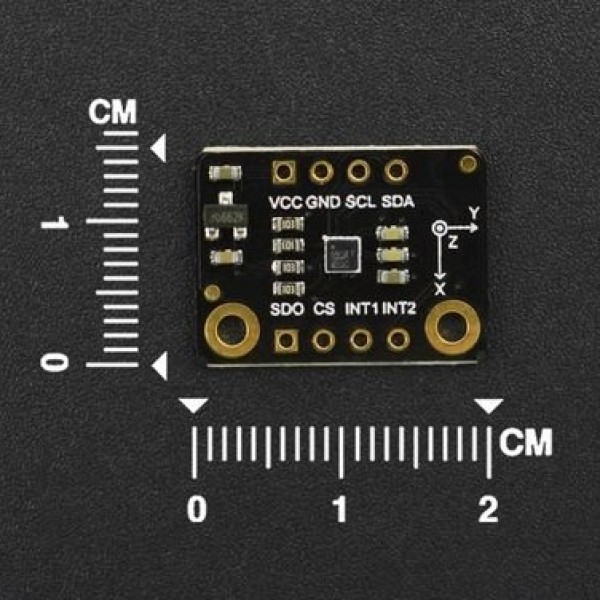

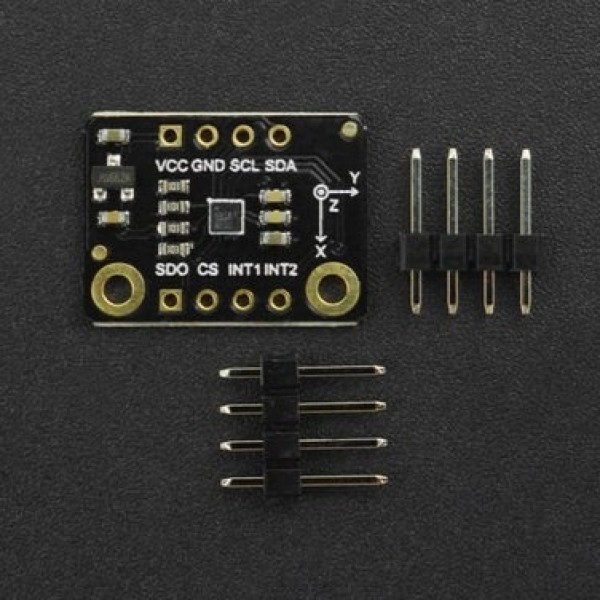

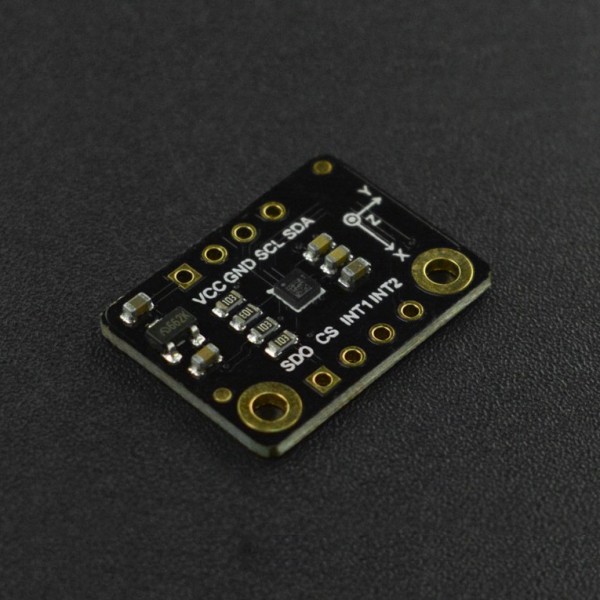

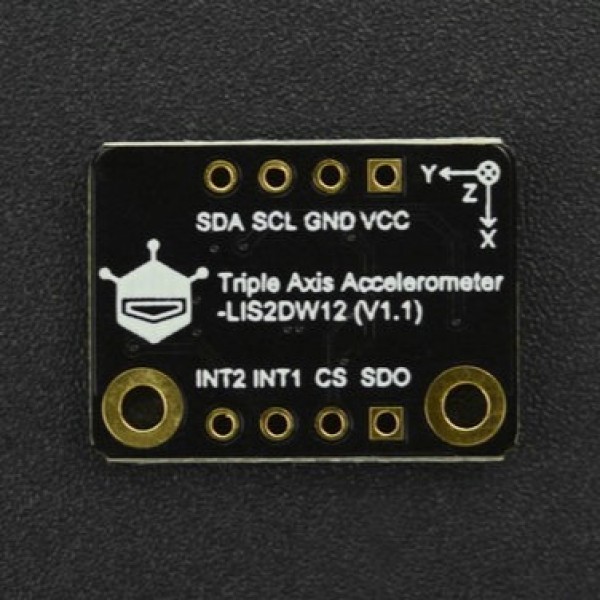

DFRobot Fermion Triple Axis Accelerometer - SPI-I2C - LIS2DW12

DFRobot Fermion Triple Axis Accelerometer - SPI-I2C - LIS2DW12
DFRobot Fermion Triple Axis Accelerometer - SPI-I2C - LIS2DW12
DFRobot Fermion Triple Axis Accelerometer - SPI-I2C - LIS2DW12
DFRobot Fermion Triple Axis Accelerometer - SPI-I2C - LIS2DW12
DFRobot Fermion Triple Axis Accelerometer - SPI-I2C - LIS2DW12
DFRobot Fermion Triple Axis Accelerometer - SPI-I2C - LIS2DW12
DFRobot Fermion Triple Axis Accelerometer - SPI-I2C - LIS2DW12
DFRobot Fermion Triple Axis Accelerometer - SPI-I2C - LIS2DW12
DFRobot Fermion Triple Axis Accelerometer - SPI-I2C - LIS2DW12
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006004
Based on 0 review(s) - Write a review
€5.50
Ex Tax: €4.55
Add to Cart
Add to wishlist

A compact 3-axis accelerometer from DFRobot. The module works with I2C or SPI protocol and has two programmable interrupts.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Fermion Triple Axis Accelerometer - SPI-I2C - LIS2DW12

This product has 0 review(s) in total.

Tags: Sensors , Acceleration-Rotation , DFRobot Fermion Triple Axis Accelerometer - SPI-I2C - LIS2DW12 , 006004 , DFRobot , SEN0405 , Acceleration sensor , I2C , SPI

Specifications

General
Brand DFRobot
Manufacturer model/SKU
Model revision
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Acceleration sensor
General physical appearance
Main color Black
Weight [g] 1
Dimension X [mm] 20
Dimension Y [mm] 15
Mounting options Mounting hole(s)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
SPI
Default I2C address 0x19
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] 10
Acceleration sensor
Sensor chip/SoC LIS2DW12
Degrees of freedom (DOF) 3
Maximum measuring range [±g] 16
Maximum resolution [bit] 16
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
Package contents
Package contents
