Name: DFRobot Fermion Triple Axis Accelerometer - I2C - BMA220 - DFROBOT-SEN0168
Brand: DFRobot
SKU: 006014
Price: 5.75 EUR
Availability: InStock

DFRobot Fermion Triple Axis Accelerometer - I2C - BMA220

New

DFRobot Fermion Triple Axis Accelerometer - I2C - BMA220

Availability: Directly available from warehouse in Eindhoven
SKU: 006014

Based on 0 review(s) - Write a review

€5.75

Ex Tax: €4.75

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

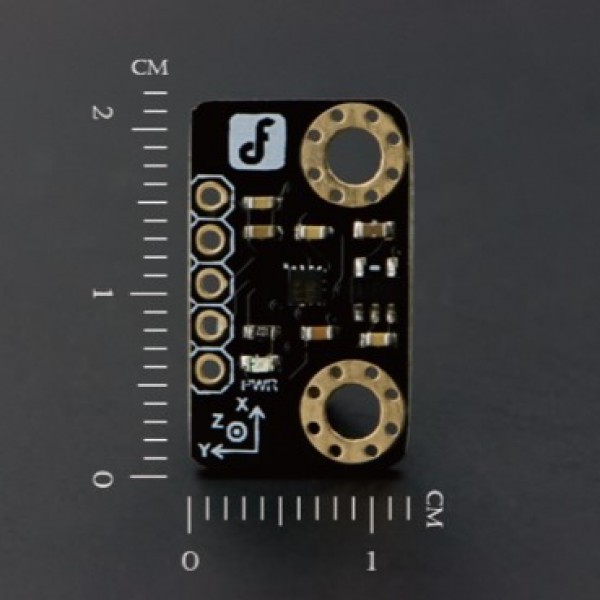

A very compact accelerometer from DFRobot.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DFRobot Fermion Triple Axis Accelerometer - I2C - BMA220

Average Rating:

This product has 0 review(s) in total.

Schematic: 006014_SEN0168_Schematic_V1.pdf

Tags: DFRobot Fermion Triple Axis Accelerometer - I2C - BMA220 , DFROBOT-SEN0168 , Acceleration-Rotation

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	SEN0168
Features	Acceleration sensor
General physical appearance
Main color	Black
Weight [g]	1
Dimension X [mm]	22
Dimension Y [mm]	13
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	2
Maximum supply voltage [V DC]	3.6
Minimum IO-pin input voltage [V]	2
Maximum IO-pin input voltage [V]	3.6
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	I2C
Default I2C address	0x0A
Adjustable I2C address	No
Acceleration sensor
Sensor chip/SoC	BMA220
Degrees of freedom (DOF)	3
Maximum measuring range [±g]	16
Maximum resolution [bit]	6
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm)
IO-connector(s)	Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x Acceleration sensor module 1x Pin header male 5p
