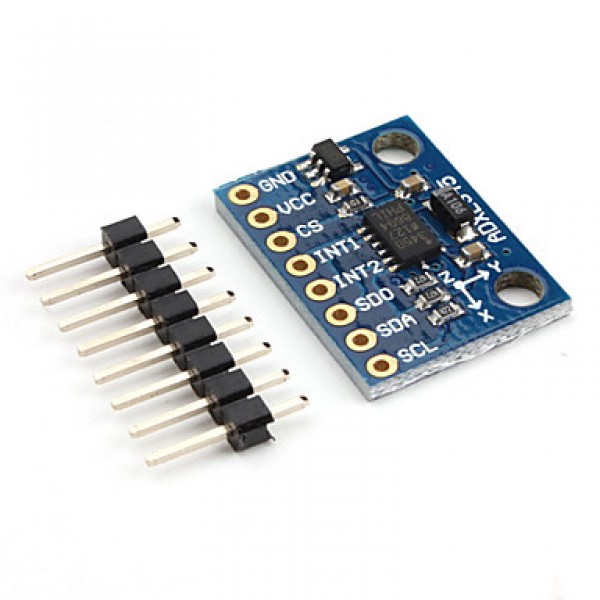

ADXL345 Digital 3-axis Accelerometer Module V2

ADXL345 Digital 3-axis Accelerometer Module V2
ADXL345 Digital 3-axis Accelerometer Module V2
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 000256
Based on 0 review(s) - Write a review
€6.50
Ex Tax: €5.37
10 or more €6.25
25 or more €6.00
50 or more €5.75
100 or more €5.50
Add to Cart
Add to wishlist

The ADXL345 is a small, low power, 3-axis accelerometer.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over ADXL345 Digital 3-axis Accelerometer Module V2

This product has 0 review(s) in total.

Datasheet: 000256_ADXL345.pdf

Tags: Sensors , Acceleration-Rotation , ADXL345 Digital 3-axis Accelerometer Module V2 , 000256 , No brand , Acceleration sensor , I2C , SPI

Specifications

General
Brand No brand
Features Acceleration sensor
General physical appearance
Main color Blue
Weight [g] 2
Dimension X [mm] 21
Dimension Y [mm] 16
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
SPI
Acceleration sensor
Sensor chip/SoC ADXL345
Degrees of freedom (DOF) 3
Maximum measuring range [±g] 16
Maximum resolution [bit] 13
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
Package contents
Package contents
