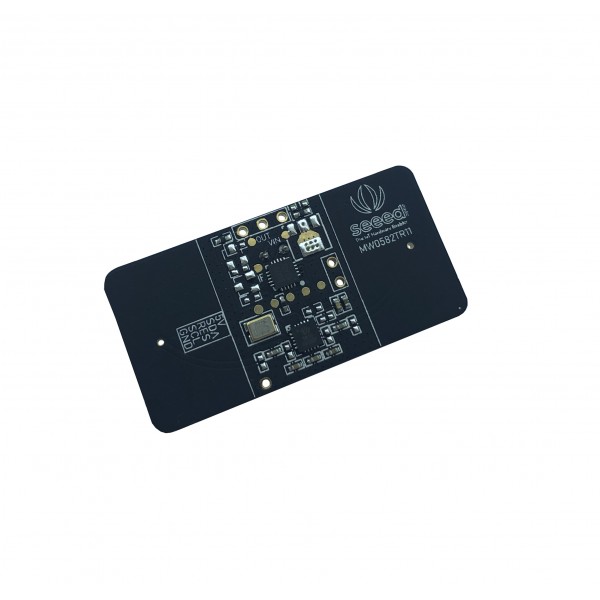

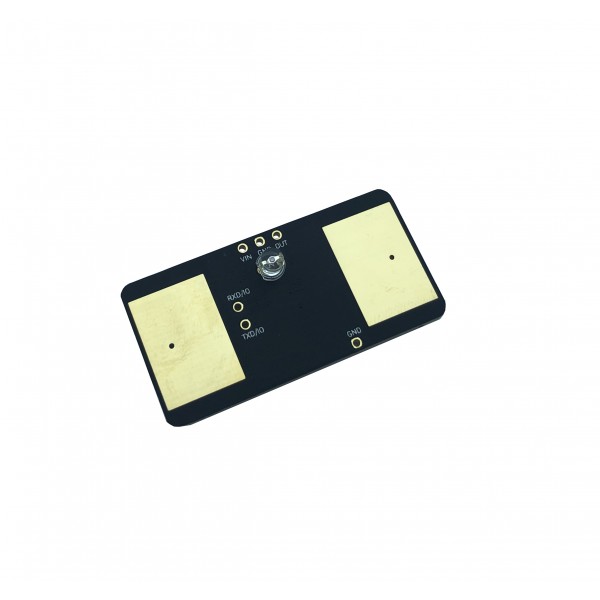

Seeed Studio Microwave Radar Motion Sensor - 5.8GHz - MW0582TR11

This sensor can be used as a replacement for a PIR sensor and works on the basis of microwaves and the doppler effect. The sensor can detect movement based on a difference in speed, this also works through almost all materials except metal. When motion is detected, the "OUT" pin is made high for a period as long as the delay time. This sensor also has a UART interface to adjust settings via AT commands (see link at the bottom of this page).

Specifications:

• Supply voltage: 5V DC
• Supply current: 40~70mA
• Signal voltage: 5V
• Communication: UART
  • Baud rate: 512000
• Delay time: ~3s (adjustable)
• Detection distance: <10m (adjustable)
• Operating frequency: 5.8GHz
• Adjustable sensitivity
• Dimensions PCB: 39 x 22.5mm

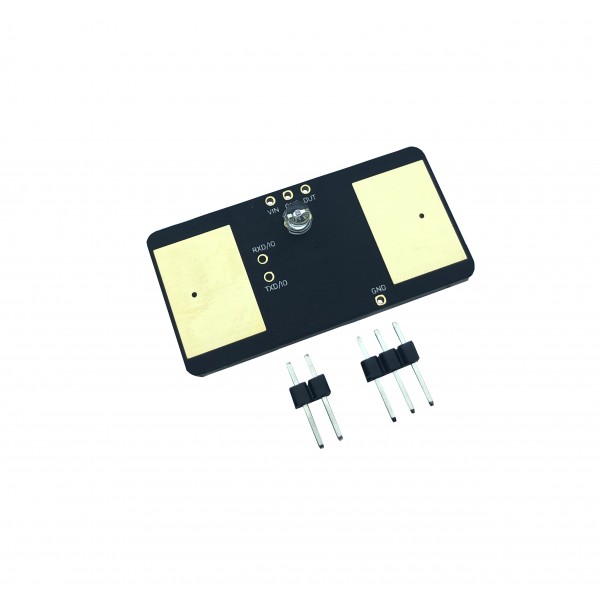

Package contents:

• 1x Microwave Radar Motion Sensor - 5.8GHz - MW0582TR11
• 1x Male header set

See the following page for more information: Microwave Sensor - 5.8GHz Doppler Radar Motion Sensor - MW0582TR11

See the following page for the AT commands and sample Python code: MWTool for mw series radar

Check the tab "Downloads" for more information and/or downloads.
