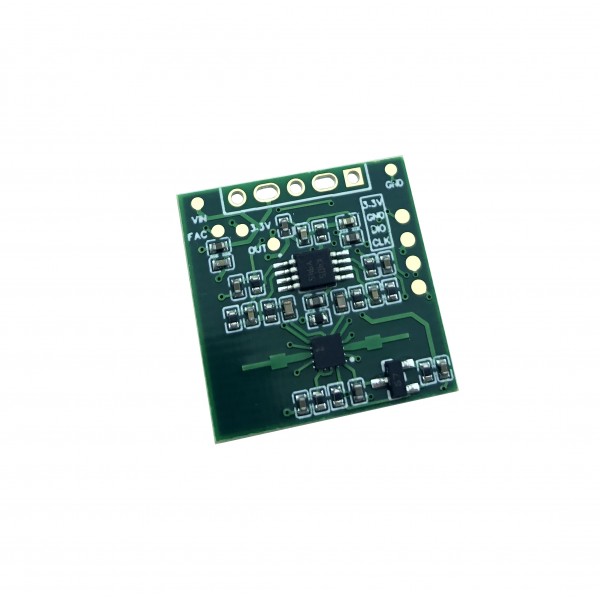

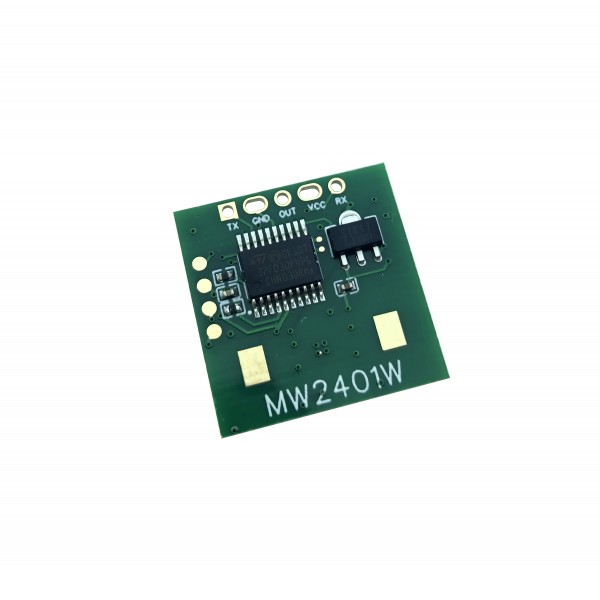

Seeed Studio Microwave Radar Motion Sensor - 24GHz - MW2401TR11

This sensor can be used as a replacement for a PIR sensor and works on the basis of microwaves and the doppler effect. The sensor can detect movement based on a difference in speed, this also works through almost all materials except metal. When motion is detected, the "OUT" pin is made high for a period as long as the delay time. This sensor also has a UART interface to adjust settings.

Specifications:

• Supply voltage: 5-12V DC
• Current: 50~56mA
• Signal voltage: 3.3V
• Communication: UART*
  • Baud rate: 115200
• Delay time: ~3s (adjustable)
• Detection distance: <20m (adjustable)
• Operating frequency: 24GHz
• Adjustable sensitivity
• PCB dimensions: 20 x 20mm

Package contents:

• 1x Microwave Radar Motion Sensor - 24GHz - MW2401TR11
• 1x Male header set

See the following page for more information: Microwave Sensor - 24GHz Doppler Radar Motion Sensor - MW2401TR11

*Note: The documentation regarding the UART communication is not complete and we cannot provide support for this.
