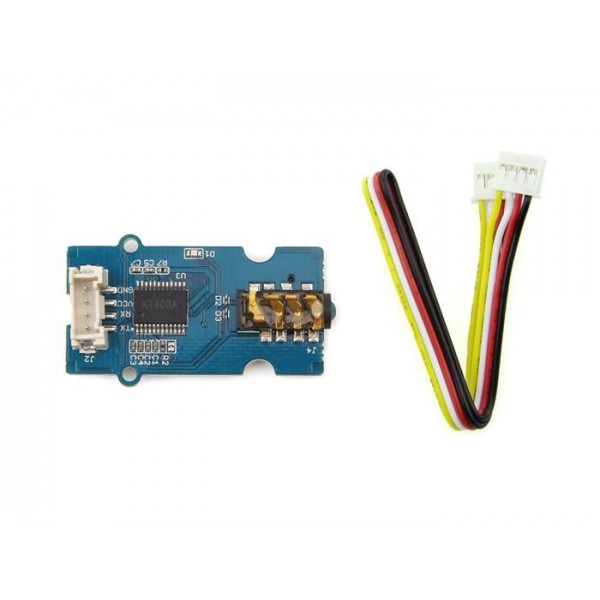

Seeed Studio Grove MP3 V2 - KT403A

A simple MP3 module from Seeed Studio with a 3.5mm audio jack and SD card slot. This module communicates via UART.

Specifications:

• Supply voltage: 3.3 - 5V DC
• Signal voltage: 3.3V (5V tolerant)
• Communicatie:
  • Interface: UART
  • Baudrate: 9600
• MP3:
  • Chip: KT403A
  • Supported audio files: MP3, WAV and WMA
  • Supported sample rates: 8/11.025/12/16/22.05/24/32/44.1/48kHz
  • DAC resolution: 24 bit
  • SD card adapter: MicroSD (up to 32GB (of which up to 8GB is useable), FAT16 or FAT32 formatted)
  • Built-in 3.5mm audio jack
• Connector: Grove

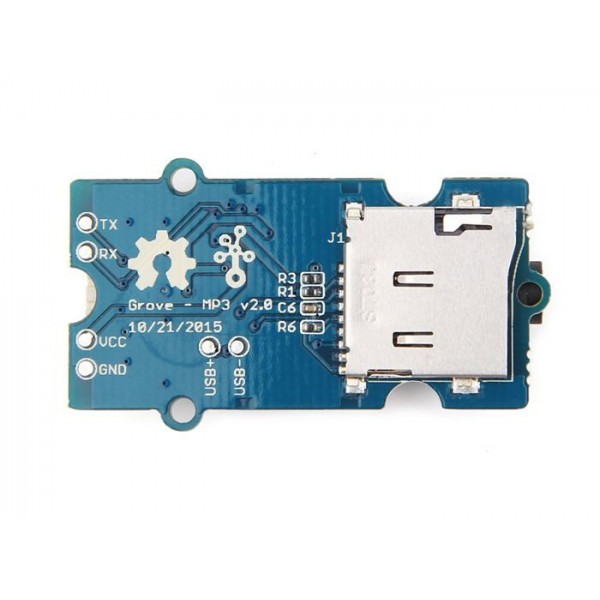

• Dimensions: See images

Package contents:

• 1x Seeed Studio Grove MP3 V2
• 1x Grove cable

See the following page for more information and samples: Seeed Studio Grove MP3 V2

Check the tab "Downloads" for more information and/or downloads.
