Seeed Studio Grove GPS - SIM28

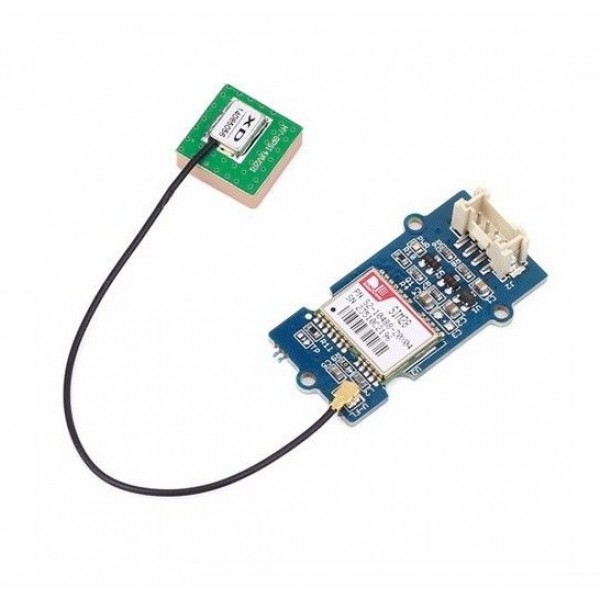

A Grove GPS module with SIM28 chip from Seeed Studio including external antenna.

Specifications:

• Supply voltage: 3.3 - 5V DC
• Signal voltage: 3.3 - 5V (same as supply voltage)
• Communication:
  • Interface: UART
  • Baud rate: 9600 - 115200 (default 9600)
• GPS:
  • Chip: SIM28
  • Maximum position accuracy: 2.5m
  • Maximum update rate: 10Hz
  • Antenna: uFL/IPEX (included)
• Connector: Grove

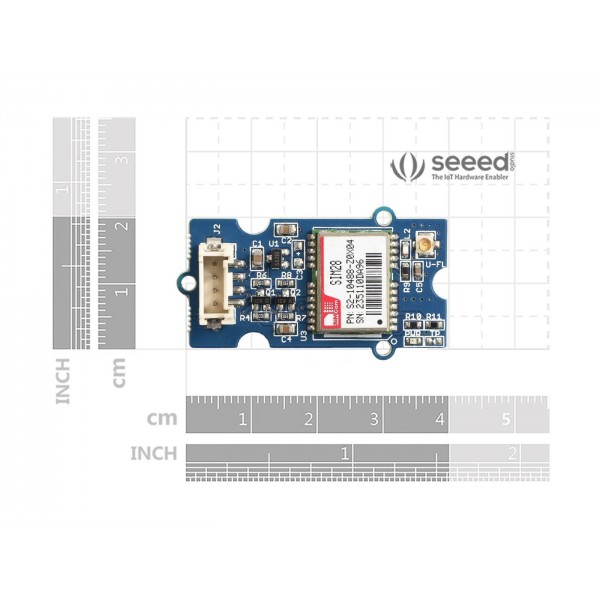

• Dimensions: See images

Package contents:

• 1x Seeed Studio Grove GPS
• 1x GPS antenna
• 1x Grove cable

See the following page for more information and examples: Seeed Studio Grove GPS
