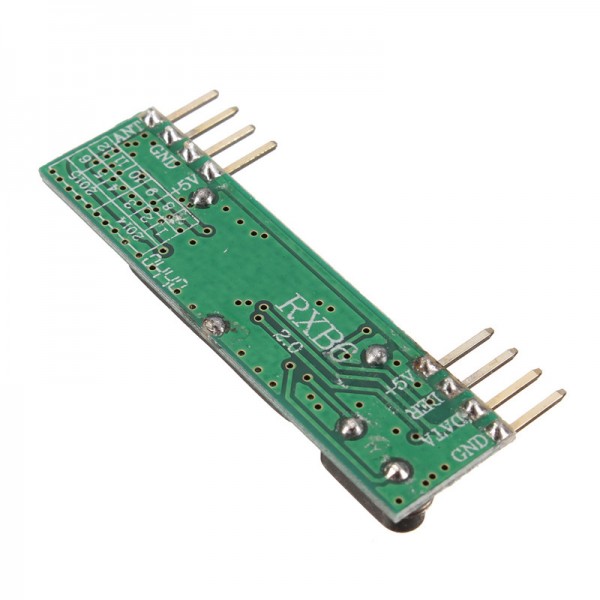

RXB6 433MHz RF receiver

This receiver is a lot more sensitive than the receiver from the standard 433MHz kit that we also offer.
This way you can receive better signals from other 433MHz transmitters.

Specifications:

• Voltage: 3.3 - 5V DC
• Power (in use): 6mA
• Receiver Frequency: 433.92MHz
• Receiver sensitivity: -110dBm

You have to attach the antenna yourself. Use a simple 17cm straight copper wire for this.
A ready-made antenna is also available. You can find it here: 433MHz Antenna.

Check the tab "Downloads" for more information and/or downloads.
