RobotDyn Data Logging Shield

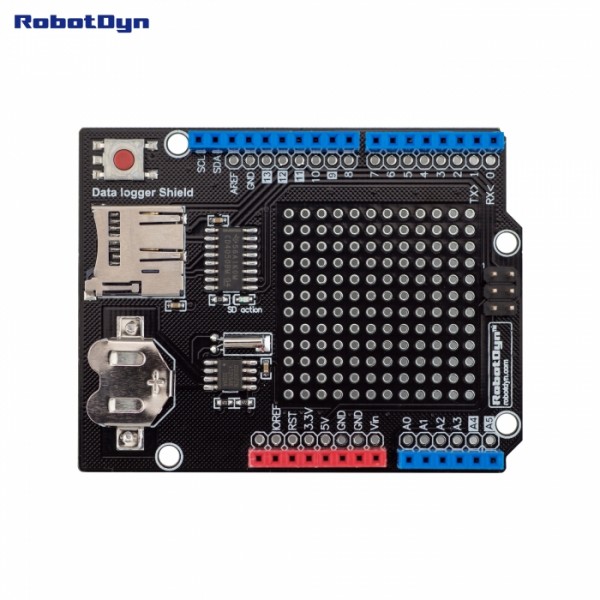

A RobotDyn shield with an RTC(DS1307) and a micro-SD card slot. (SD card is directly connected to the Arduino via the shield)

With this module it is easy to save data with timestamps on a micro-SD card.
On this shield is a 3.3V level converter so the interface with a 5V Arduino is no issue.
A battery for the RTC is included.

Pinout:

• DS1307: A4 (SDA), A5 (SCL)
• SD card: 9(CS), 11(MOSI/DI), 12(MISO/DO), 13(CLK)

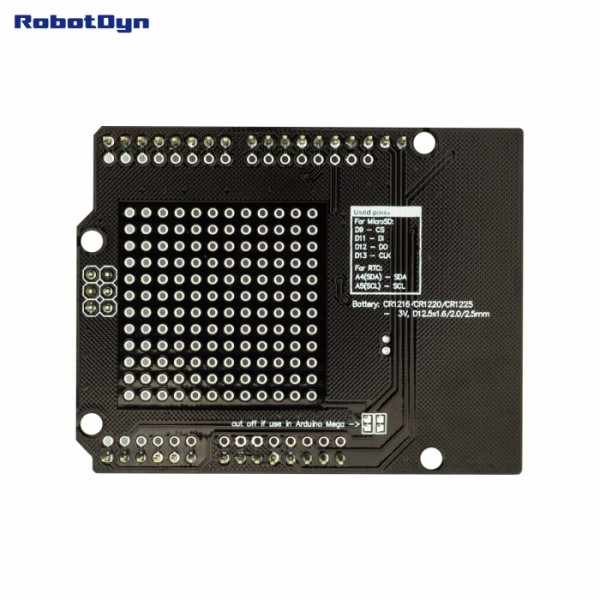

Note: If the shield is used with an Arduino Mega, then some connections must be cut on the bottom of the PCB.(check PCB text "cut off if use in Arduino Mega")
