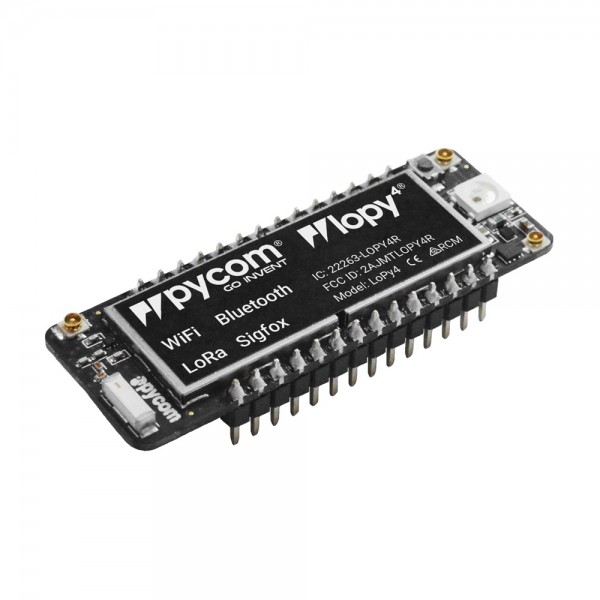

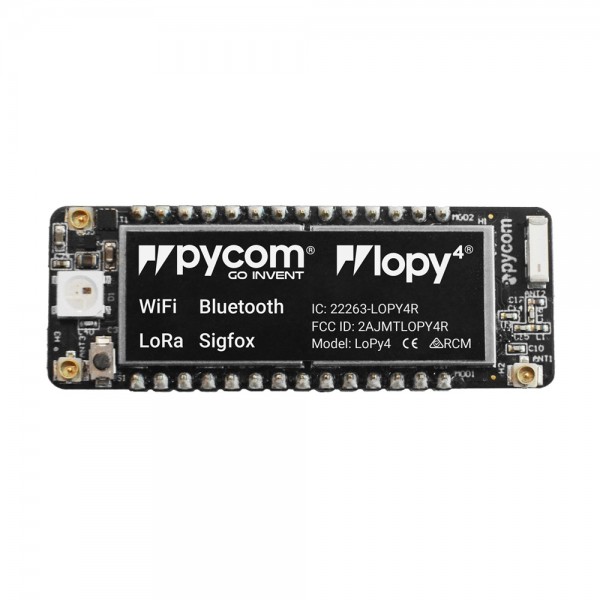

Pycom LoPy4

With the LoPy4 from Pycom you have a small MicroPython based IoT development platform with WiFi, Bluetooth, Sigfox and LoRa. With a Wi-Fi range up to 1km in combination with the ESP32 Wi-Fi chip from Espressif offers many possibilities for IoT applications.
With the Python API you can access all hardware via Python scripts that you can place on this board. These functions are extended and improved by updates that are provided by Pycom.

Features:

• Based on Espressif ESP32 chip (dual-core with Wi-Fi and Bluetooth)
• Up to 1km Wi-Fi range
• Use of MicroPython (slim version of Python)
• Fits on a breadboard
• Connection between external or internal antenna possible from MicroPython script
• Low energy consumption
• Processor 1 for network and IPv6 stack
• Processor 2 for own code
• Extra ULP coprocessor for GPIO, ADC channels and other peripherals in the chip (deep-sleep only 25uA power consumption)
• Can be used as LoRa node and LoRa Nano Gateway

Interfaces:

• 2x UART, 2x SPI, I2C, I2S, micro SD card
• 8x 12-bit ADC
• 4x 16-bit Timers with PWM and input capture
• DMA for all peripherals
• 24x GPIO (max)

LoRa Specifications:

• Semtech LoRa transceiver SX1272
• LoRaWAN stack
• Class A and C devices
• Frequency LoRa: 868MHz (+14dBm maximum)
• LoRa certified

Sigfox Specifications:

• Class 0 Device. Maximum Tx power: +14dBm
• Node range: up to 50km
• Sigfox certified

Other Specifications:

• Hardware encryption: SHA, MD5, DES and AES
• Wi-Fi 802.11b/g/n 16mbps
• Bluetooth Low Energy or Classic
• RTC (32kHz)
• Supply voltage: 3.3 - 5.5V
• Current 3.3V output: up to 400mA
• SSL/TLS support
• WPA Enterprise security
• RAM memory: 4MB
• Flash memory: 8MB
• Hardware floating point acceleration
• Multi-threading in Python
• FCC - 2AJMTLOPY4R
• CE 0700
• Dimensions: 55 x 20 x 3.5mm (without headers)

For more information, support and tutorials, see the following page: LoPy4
