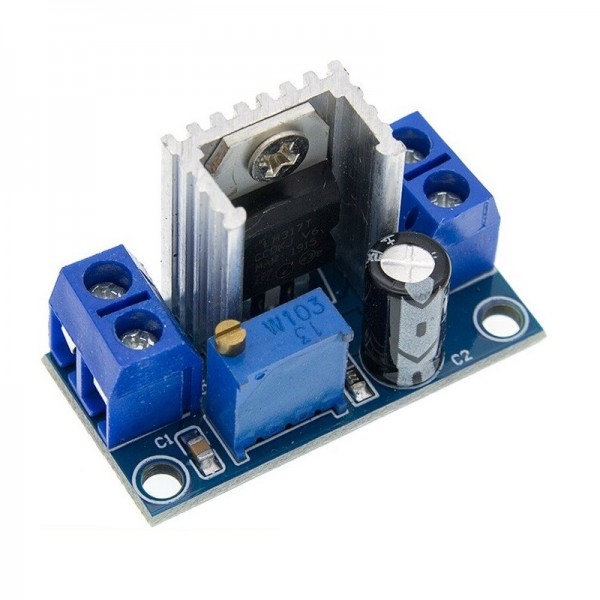

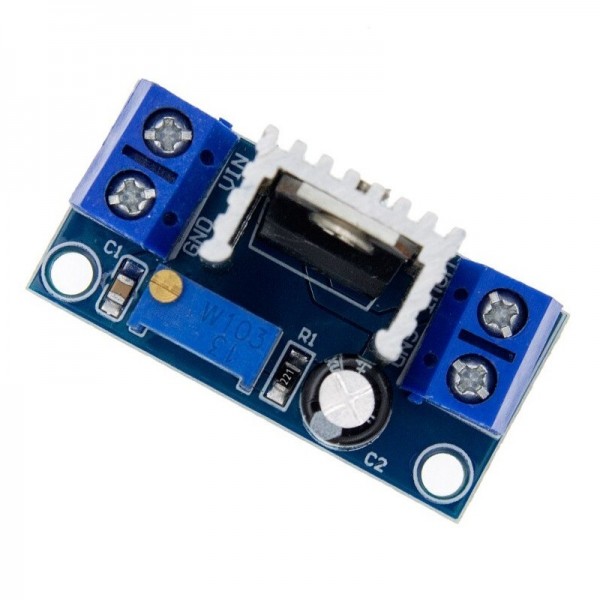

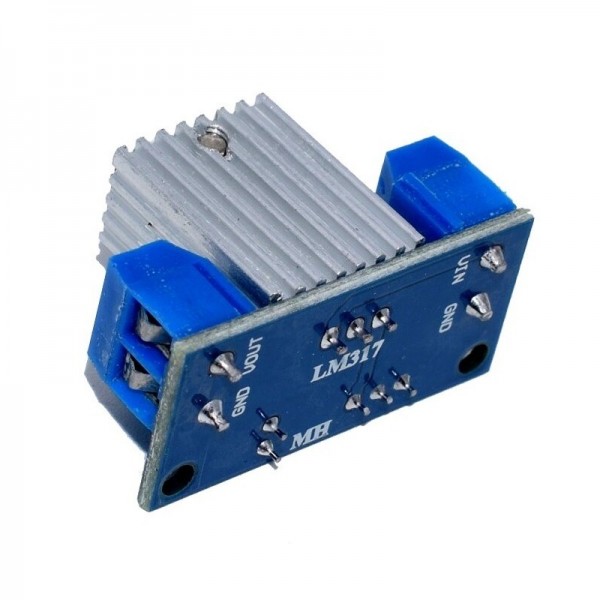

LM317 Adjustable Voltage Regulator Module

A simple adjustable linear voltage regulator.

Specifications:

• Input voltage: 4.25 - 40V DC
• Output voltage: 1.25 - 37V DC (input voltage - 2.5V)
• Maximum output current*: 1.5A (2.2A peak)
• Module type: Linear voltage regulator
• Protection features:
  • Short circuit protection: Yes
  • Polarity protection: No (so pay close attention to the + and - when connecting the module)
  • Thermal protection: Yes (output is automatically turned off when overheated)
• Working temperature: 0 - 125°C
• Dimensions: 35 x 17 x 23mm

Package contents:

• 1x LM317 Adjustable Voltage Regulator Module 1A

*Note: The maximum continuous output current depends on the difference between the input voltage and output voltage. The bigger the difference, the lower the maximum continuous output current.

Check the tab "Downloads" for more information and/or downloads.
