Breadboard power supply 5V en 3.3V

Availability: Directly available from warehouse in Eindhoven
SKU: 000176

Based on 4 review(s) - Write a review

€2.50

Ex Tax: €2.07

10 or more €2.25

20 or more €2.00

50 or more €1.75

100 or more €1.50

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

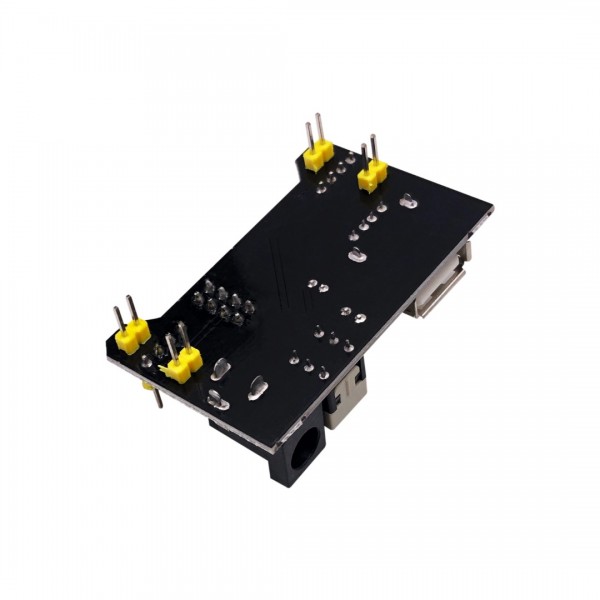

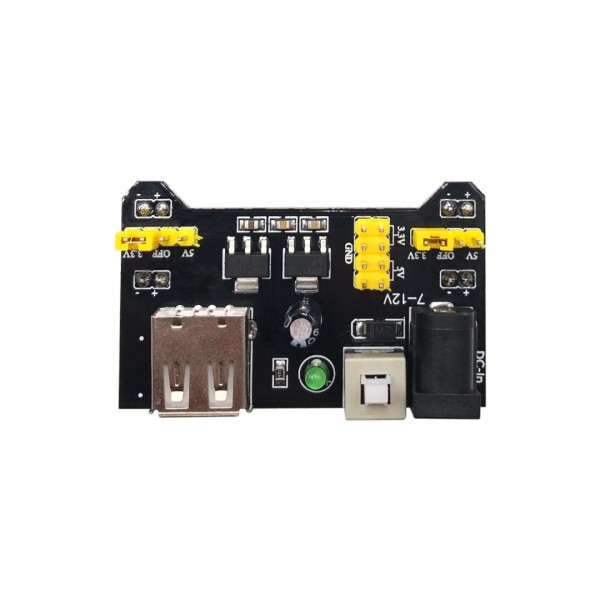

A power supply for your breadboard. The module has two power lines which are both adjustable in 3.3V or 5V. The module also has a USB connection (always 5V), an On/Off button, and an LED that indicates whether the power is on.

Please login or register to review

Reviews Over Breadboard power supply 5V en 3.3V

Average Rating:

This product has 4 review(s) in total.

Tags: Breadboard power supply 5V en 3.3V , BREADPOWER , Voltage Regulators

Specifications

General
Brand	No brand
Features	Voltage converter
General physical appearance
Main color	Black
Weight [g]	11
Dimension X [mm]	53
Dimension Y [mm]	32
Mounting options	Pin headers
Form factor	Module (general)
Voltage converter
Chip/SoC	AMS1117-3.3 AMS1117-5.0
Voltage converter type	Linear regulator/LDO
Conversion	DC-DC
Isolated	No
Output voltage type	Variable (discrete) (3.3V or 5V, adjustable via jumpers) (USB output only 5V)
Constant current function	No
Minimum input voltage [V DC]	6.5 (7V recommended)
Maximum input voltage [V DC]	12 (10V recommended)
Minimum output voltage [V DC]	3.3
Maximum output voltage [V DC]	5
Supported output voltages [V DC]	5 3.3
Minimum input and output voltage difference [V DC]	1.5
Maximum output current [A]	0.7 (3.3V + 5V combined)
Safety features	Temperature
Connectors
Input voltage connector(s)	DC-jack 5.5/2.1mm female
Output voltage connector(s)	Pin header male (2.54mm) USB-A female
Package contents
Package contents	1x Breadboard power supply
