AMS1117-3.3V Voltage Regulator Module

AMS1117-3.3V Voltage Regulator Module
AMS1117-3.3V Voltage Regulator Module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 000481
Based on 1 review(s) - Write a review
€0.80
Ex Tax: €0.66
10 or more €0.75
20 or more €0.70
50 or more €0.65
100 or more €0.60
Add to Cart
Add to wishlist

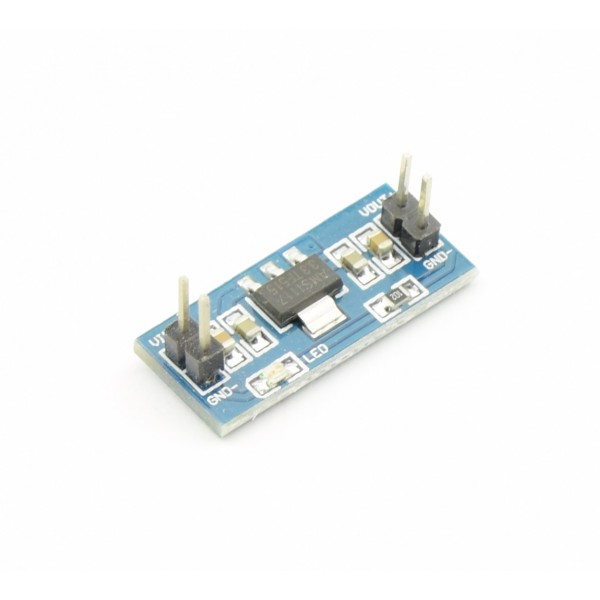

This module is suitable for making an extra 3.3V supply of eg a 5V power supply.

Specifications:

  • Voltage range: 4.5-7VDC
  • Maximum current: 800mA
  • LED indicates by way of indication whether the module is powered.
  • Dimensions: 25x11mm

The pin names on the board show the input voltage (VIN) and output voltage (VOUT).
Both the input and output are pin headers so you can easily connect the module with dupont cables.
