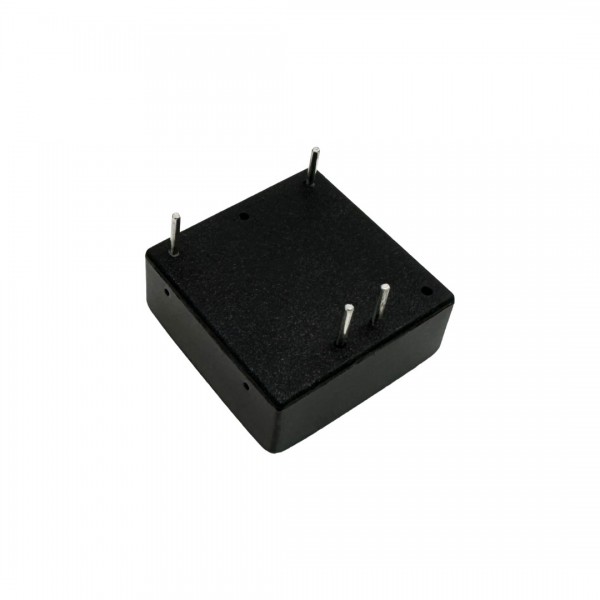

Name: Hi-Link Isolated DC-DC Voltage Converter - 9-36V naar 3.3V 1.25A - HLK-URB2403YMD-5WR3 - HLK-URB2403YMD-5WR3
SKU: 006066
Price: 6 EUR
Availability: InStock

Hi-Link Isolated DC-DC Voltage Converter - 9-36V naar 3.3V 1.25A - HLK-URB2403YMD-5WR3

New

Hi-Link Isolated DC-DC Voltage Converter - 9-36V naar 3.3V 1.25A - HLK-URB2403YMD-5WR3

Availability: Directly available from warehouse in Eindhoven
SKU: 006066

Based on 0 review(s) - Write a review

€6.00

Ex Tax: €4.96

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

A simple isolated DC-DC voltage converter. This converter is well suited, for example, to create a negative voltage for an op-amp circuit.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Hi-Link Isolated DC-DC Voltage Converter - 9-36V naar 3.3V 1.25A - HLK-URB2403YMD-5WR3

Average Rating:

This product has 0 review(s) in total.

Datasheet: 006066_UR(A)B_YMD-5WR3 Series Technical Manual V1.1.pdf

Tags: Hi-Link Isolated DC-DC Voltage Converter - 9-36V naar 3.3V 1.25A - HLK-URB2403YMD-5WR3 , HLK-URB2403YMD-5WR3 , Isolated Voltage Converters

Specifications

General
Brand	Hi-Link
Manufacturer model/SKU	HLK-URB2403YMD-5WR3
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Voltage converter
General physical appearance
Main color	Black
Weight [g]	13
Dimension X [mm]	25
Dimension Y [mm]	25
Dimension Z [mm]	11
Mounting options	THT
Form factor	Individual component
Voltage converter
Voltage converter type	Buck
Conversion	DC-DC
Isolated	Yes
Output voltage type	Fixed
Constant current function	No
Maximum switching frequency [kHz]	250
Minimum input voltage [V DC]	9.0
Maximum input voltage [V DC]	36
Minimum output voltage [V DC]	3.3
Maximum output voltage [V DC]	3.3
Maximum output current [A]	1.25
Maximum output power [W]	4.1
Maximum output ripple [mVp-p]	80 (max) 50 (typical)
Line regulation [%]	0.2
Load regulation [%]	0.5
Safety features	Short circuit Under voltage (input) Overcurrent (output) Over voltage (output)
Undervoltage locktout (UVLO) [V]	6.5
Connectors
Input voltage connector(s)	Solder pin(s) (THT)
Output voltage connector(s)	Solder pin(s) (THT)
Package contents
Package contents	1x Voltage converter
