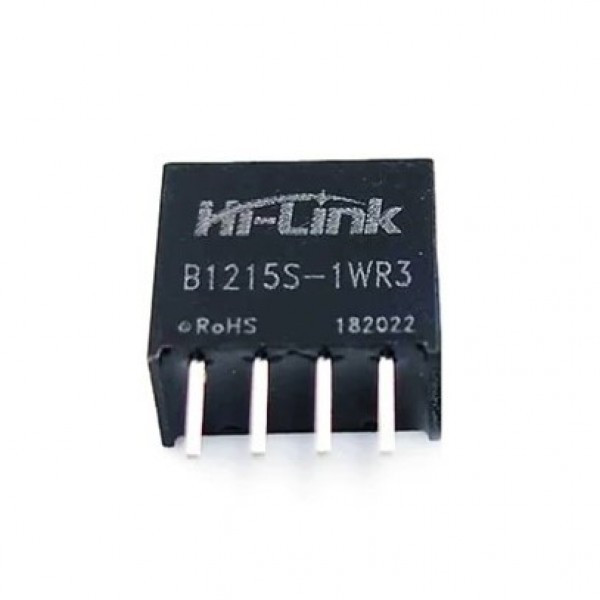

Hi-Link Isolated DC-DC Voltage Converter - 12V to 15V 67mA - HLK-B1215S-1WR3

Hi-Link Isolated DC-DC Voltage Converter - 12V to 15V 67mA - HLK-B1215S-1WR3
Hi-Link Isolated DC-DC Voltage Converter - 12V to 15V 67mA - HLK-B1215S-1WR3
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005842
Based on 0 review(s) - Write a review
€2.80
Ex Tax: €2.31
Add to Cart
Add to wishlist

A simple isolated DC-DC voltage converter. This converter is well suited, for example, to create a negative voltage for an op-amp circuit.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review
Tags: Voltage Converters , Isolated Voltage Converters , Hi-Link Isolated DC-DC Voltage Converter - 12V to 15V 67mA - HLK-B1215S-1WR3 , 005842 , Hi-Link , HLK-B1215S-1WR3 , Voltage converter

Specifications

General
Brand Hi-Link
Manufacturer model/SKU HLK-B1215S-1WR3
Norm conformity RoHS
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Voltage converter
General physical appearance
Main color Black
Weight [g] 2
Dimension X [mm] 12
Dimension Y [mm] 10
Dimension Z [mm] 6
Mounting options THT
Form factor Individual component
Experiment PCB friendly Yes
Voltage converter
Voltage converter type Boost
Conversion DC-DC
Isolated Yes
Output voltage type Fixed
Constant current function No
Minimum input voltage [V DC] 10.8
Maximum input voltage [V DC] 13.2
Minimum output voltage [V DC] 15
(±15%)
Maximum output voltage [V DC] 15
(±15%)
Maximum input current [A] 0.1
Maximum output current [A] 0.067
Maximum output power [W] 1
Maximum output ripple [mVp-p] 80
Line regulation [%] 1.2
Load regulation [%] 6
Safety features Short circuit
Connectors
Input voltage connector(s) Solder pin(s) (THT)
Output voltage connector(s) Solder pin(s) (THT)
Pin distance [mm] 2.54
Pin length (PCB/short side) [mm] 4.1
Package contents
Package contents 1x Voltage converter
