QSKJ DC-DC Adjustable Step-Up-Down Buck-Boost Converter - 150W

Availability: Directly available from warehouse in Eindhoven
SKU: 005885

Based on 0 review(s) - Write a review

€48.00

Ex Tax: €39.67

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

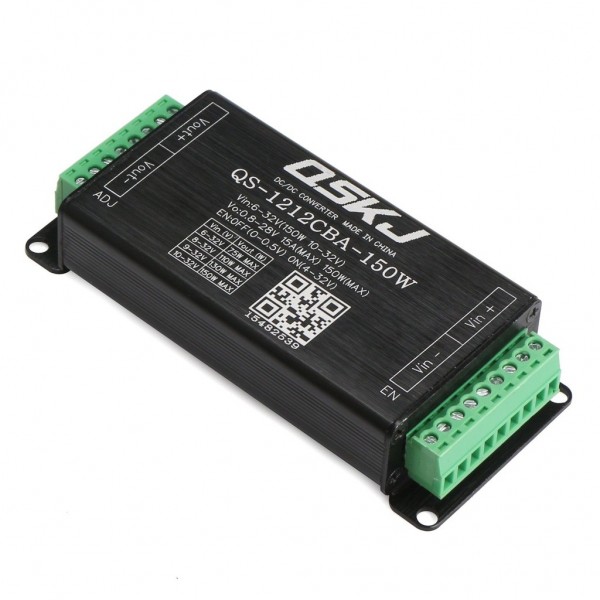

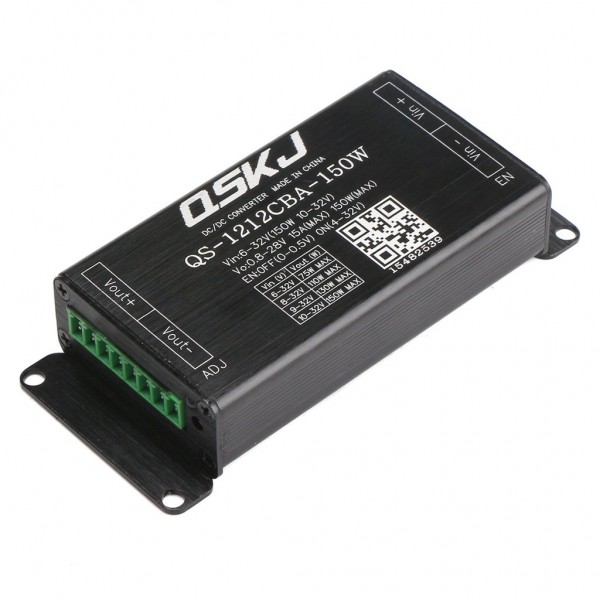

A powerful adjustable step-down and step-up (buck-boost) converter from QSKJ which is neatly finished in a metal housing. The converter has an LED status indicator and an enable (EN) pin. This pin is pulled-up by default, if it is connected to ground, the converter will go into sleep mode. The output voltage can be adjusted with the potentiometer.

Please login or register to review

Reviews Over QSKJ DC-DC Adjustable Step-Up-Down Buck-Boost Converter - 150W

Average Rating:

This product has 0 review(s) in total.

Tags: QSKJ DC-DC Adjustable Step-Up-Down Buck-Boost Converter - 150W , QS-1212CBA-150W , Buck-Boost (Step-Up-Down) Converters

Specifications

General
Brand	QSKJ
Manufacturer model/SKU	QS-1212CBA-150W
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85 (the output power must be reduced above 40°C)
Features	Voltage converter Enclosure
General physical appearance
Main color	Black
Weight [g]	142
Dimension X [mm]	104
Dimension Y [mm]	45
Dimension Z [mm]	21
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	4
Form factor	Module (general)
General electrical properties
Indication (deep-)sleep current [μA]	200
Minimum IO-pin input voltage [V]	3.3 (EN pin)
Maximum IO-pin input voltage [V]	5 (EN pin)
IO-pin output voltage [V]	3.3 (EN pin)
Communication
Hardware interface(s)	Digital (high-active)
Voltage converter
Voltage converter type	Buck-boost
Conversion	DC-DC
Isolated	No
Soft start	Yes
Output voltage type	Variable (continuous) (via potentiometer)
Constant current function	No
Minimum input voltage [V DC]	6.0
Maximum input voltage [V DC]	32
Minimum output voltage [V DC]	0.8
Maximum output voltage [V DC]	28
Maximum output current [A]	15 (max 6A per terminal)
Maximum output power [W]	150 (10-32V input) 130 (9-10V input) 110 (8-9V input) 75 (6-8V input)
Line regulation [%]	0.5
Load regulation [%]	1
Safety features	Short circuit Over voltage (input) Overcurrent (output)
Connectors

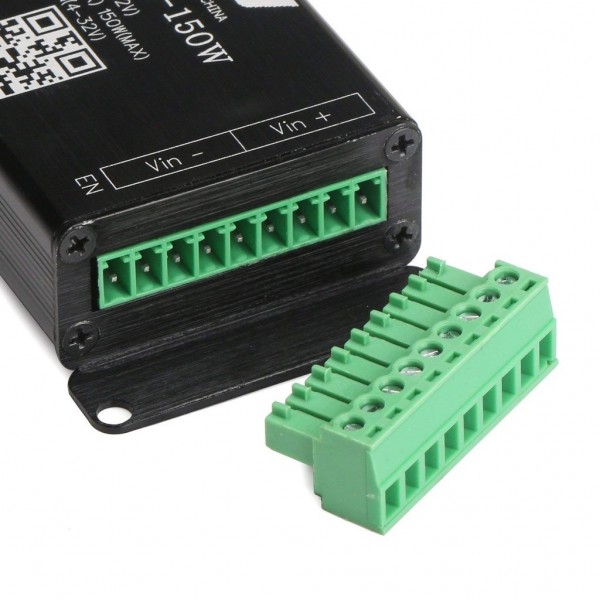

IO-connector(s)	Detachable block male (15EDG-3.81)
Input voltage connector(s)	Detachable block male (15EDG-3.81)
Output voltage connector(s)	Detachable block male (15EDG-3.81)
Enclosure
Material	Metal (unknown alloy)
Package contents

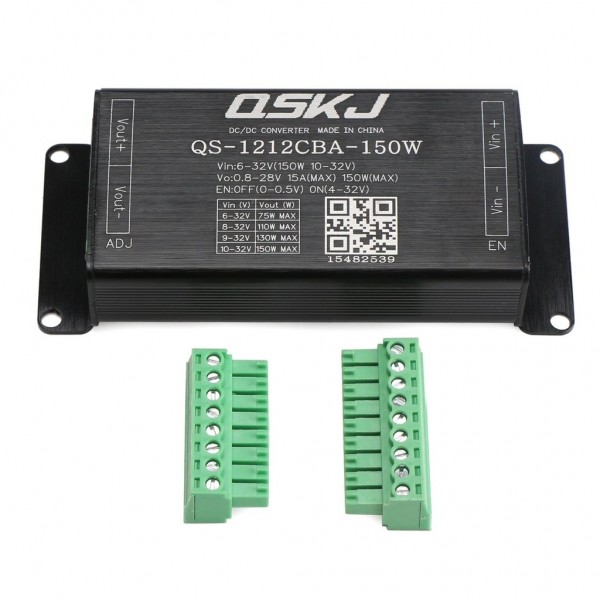

Package contents	1x DC-DC buck-boost converter 1x Detachable screw terminal 8p 1x Detachable screw terminal 9p
