Olimex BB-PWR-3608 DC-DC Step-Up Boost Converter - 12-24V
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005949
€4.50
Ex Tax: €3.72
Your shopping cart is empty!

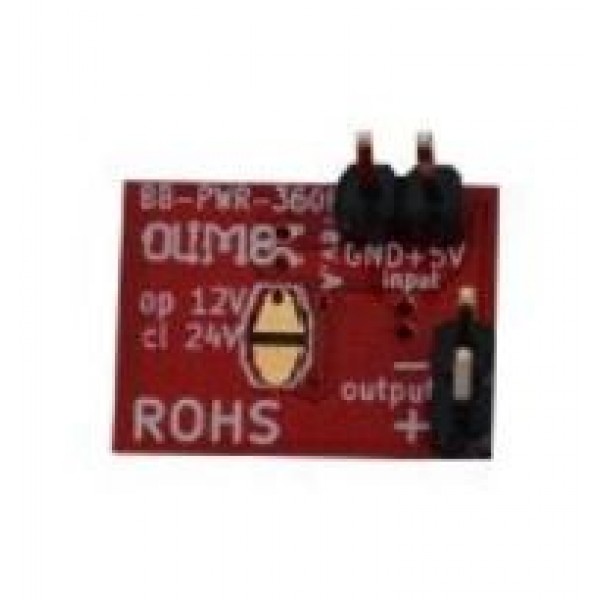

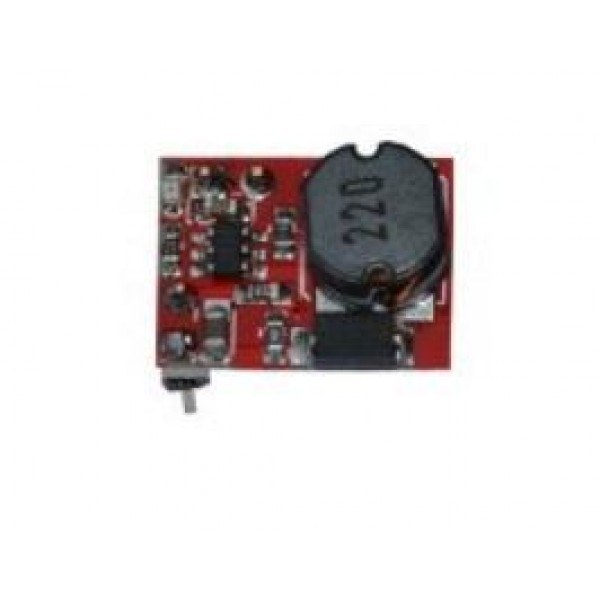

A small step-down buck converter from Olimex. Very handy to use on a breadboard (see pictures). The output voltage can be adjusted using a solder bridge, by default it is set to 12V.
Note: Breadboard is not included.
Check the tab "Downloads" for more information and/or downloads.
This product has 0 review(s) in total.
Datasheet: 005949_MT3608.pdf
Schematic: 005949_BB-PWR-3608_revA-schematic.pdf
General | |
Brand | Olimex |
Manufacturer model/SKU | BB-PWR-3608 |
Model revision | A |
Norm conformity | RoHS |
Minimum operating temperature [°C] | -40 |
Maximum operating temperature [°C] | 85 |
Features | Voltage converter |
General physical appearance | |
Main color | Red |
Weight [g] | 2 |
Dimension X [mm] | 15 |
Dimension Y [mm] | 12 |
Mounting options | Pin headers |
Form factor | Module (general) |
Voltage converter | |
Chip/SoC | MT3608 |
Voltage converter type | Boost |
Conversion | DC-DC |
Switching method | Non-synchronous |
Isolated | No |
Soft start | Yes |
Output voltage type | Variable (discrete) |
Constant current function | No |
Maximum switching frequency [kHz] | 1200 |
Minimum input voltage [V DC] | 2.0 |
Maximum input voltage [V DC] | 24 |
Minimum output voltage [V DC] | 12 |
Maximum output voltage [V DC] | 24 |
Supported output voltages [V DC] | 12 24 |
Maximum switching current [A] | 4.0 |
Maximum input current [A] | 4.0 |
Maximum output current [A] | 1.0 (@12V) 0.5 (@24V) |
Safety features | Under voltage (input) Overcurrent (output) Temperature |
Undervoltage locktout (UVLO) [V] | 1.5 |
Connectors | |
Input voltage connector(s) | Pin header male (2.54mm) |
Output voltage connector(s) | Pin header male (2.54mm) |
Package contents | |
Package contents | 1x Voltage converter |
