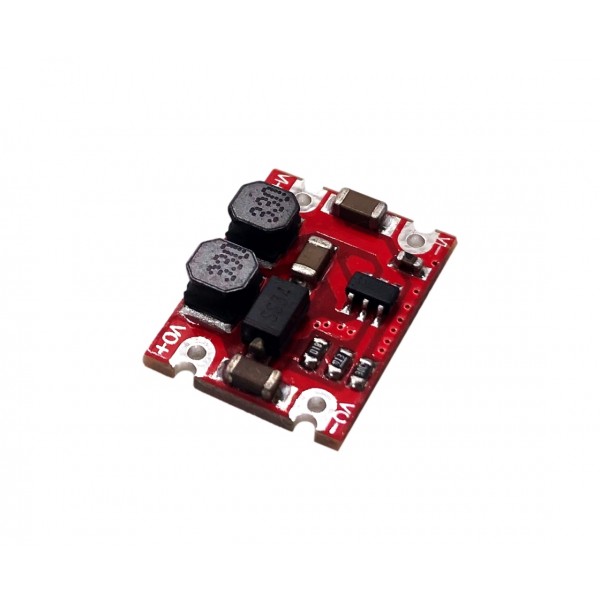

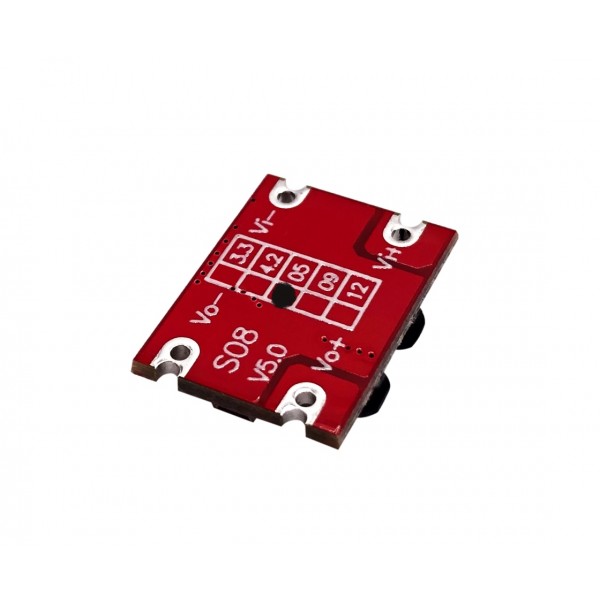

DC-DC Step-Up-Down Buck-Boost Converter - 0.6A - 5V Output

A step-down and step-up (buck and boost) converter with a fixed output voltage. Can be used to decrease or increase the voltage of, for example, a battery or other voltage source.

Specifications:

• Input voltage: 2.5 - 15V DC
• Output voltage: 5V DC
• Maximum output current: 0.6A
• Maximum output ripple: 50mV
• Switching frequency: 1.2MHz
• Maximum conversion efficiency: 85%
• Module type: Non-isolated buck-boost (step-up-down)
• Working temperature: -40 - 85°C
• Security Features:
  • Short circuit protection: No (one can use a fuse or protection circuit if necessary)
  • Polarity protection: No (the input and output are not protected by a diode)
  • Overheating protection: No (if the module gets hot, you can choose to use a cooling)
• Dimensions PCB: 17 x 13mm

Package contents:

• 1x DC-DC Step-Up-Down Buck-Boost Converter - 0.6A - 5V Output
