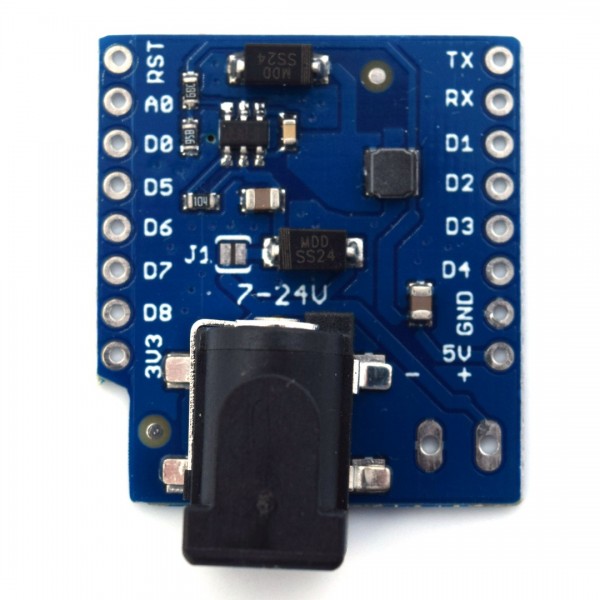

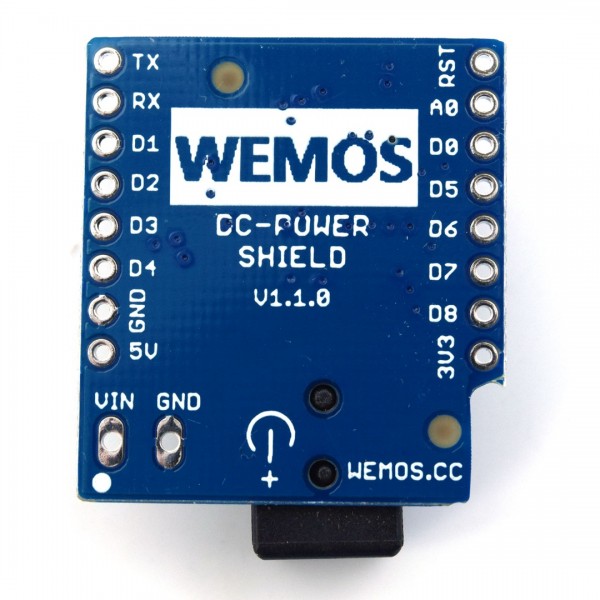

Wemos DC Power Shield for D1 Mini

A shield to power your (Wemos) D1 Mini via a 5.5 mm DC jack connection or the included 2 pin 2.54mm screw terminal.
The shield has a built-in DC-DC converter that converts the voltage efficiently to 5V.

Specifications:

• Input voltage: 7-24V DC
• Maximum current: 1A
• Connection voltage for 5.5 mm DC jack or via "VIN" and "GND" pins with the screw terminal.
• Reverse polarity protection diode

*Note: 24V DC is absolute max! Beware of power supplies that a high output ripple, or a high start-up peak voltage, this can burn out the shield.

If you want to bypass the diode (for reverse pole protection), solder the soldering pads at "J1" together.

Pin headers and a 2 pin 2.54mm screw terminal are included with this shield

For more information, check this page: DC Power Shield

Note: Because Wemos regularly improves its products, it may be that an older version is supplied than the one mentioned in the link above. Moreover, the pictures on our site might show an older version of the product we currently supply. If you want to know which version we currently have in stock, please contact us.
