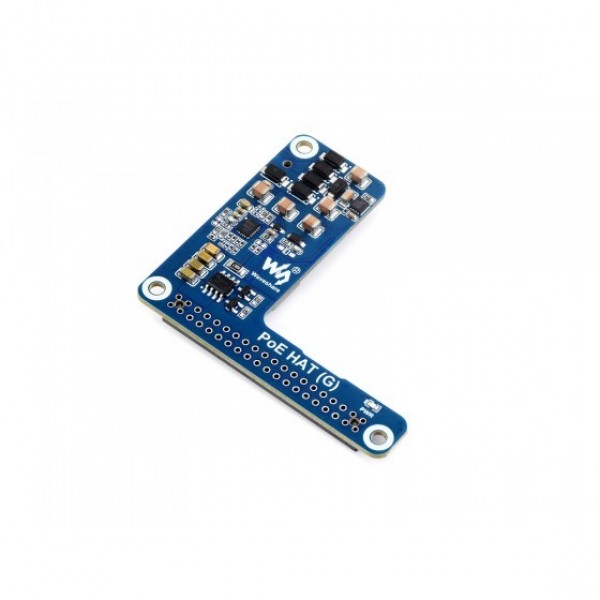

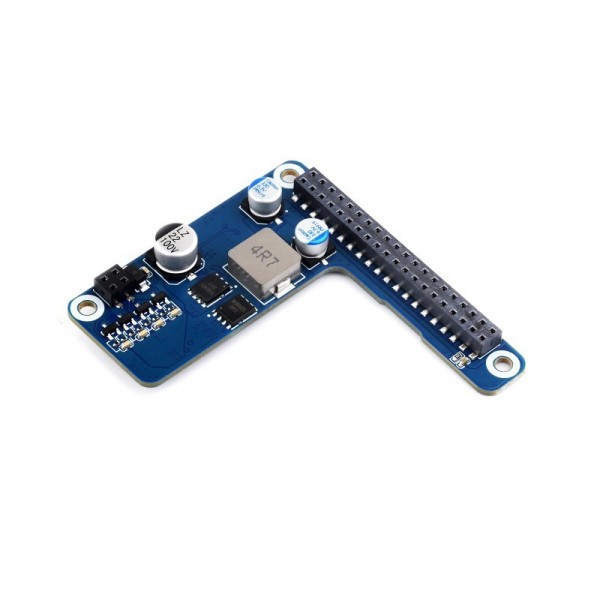

Waveshare Power over Ethernet PoE HAT (G) - for Raspberry Pi 5

Waveshare Power over Ethernet PoE HAT (G) - for Raspberry Pi 5
Waveshare Power over Ethernet PoE HAT (G) - for Raspberry Pi 5
Waveshare Power over Ethernet PoE HAT (G) - for Raspberry Pi 5
Waveshare Power over Ethernet PoE HAT (G) - for Raspberry Pi 5
Waveshare Power over Ethernet PoE HAT (G) - for Raspberry Pi 5
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006615
€15.00
Ex Tax: €12.40

With this Power over Ethernet (PoE) HAT you can supply a Raspberry Pi with power via the ethernet connection.

This module is suitable for the Raspberry Pi 5.

Note: To use the PoE function, a switch or router that supports PoE or a PoE injector is required.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare Power over Ethernet PoE HAT (G) - for Raspberry Pi 5

This product has 0 review(s) in total.

Specifications

General
Brand Waveshare
Manufacturer model/SKU 27670
Features PoE
General physical appearance
Main color Blue
Weight [g] 22
(module + pin headers)
Dimension X [mm] 65
Dimension Y [mm] 65
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor Module (general)
Raspberry Pi SBC layout/HAT
(only suitable for Raspberry Pi 5)
Voltage converter
Chip/SoC MP9928
Voltage converter type Buck
Conversion DC-DC
Isolated No
Output voltage type Fixed
Minimum input voltage [V DC] 38
Maximum input voltage [V DC] 57
Minimum output voltage [V DC] 5
Maximum output voltage [V DC] 5
Maximum output current [A] 5.0
Maximum output power [W] 25
Safety features Short circuit
Overcurrent (output)
Temperature
Over voltage (output)
Connectors
Input voltage connector(s) Pin header female (2.54mm)
Output voltage connector(s) Pin header female (2.54mm)
Package contents
Package contents 1x Power over Ethernet HAT (F)
1x Female pin header (long) 2x20p
1x Female pin header (long) 2x2p
4x Spacer
8x Bolt
