Waveshare Power over Ethernet PoE HAT (F) - for Raspberry Pi 5

Waveshare Power over Ethernet PoE HAT (F) - for Raspberry Pi 5
Waveshare Power over Ethernet PoE HAT (F) - for Raspberry Pi 5
Waveshare Power over Ethernet PoE HAT (F) - for Raspberry Pi 5
Waveshare Power over Ethernet PoE HAT (F) - for Raspberry Pi 5
Waveshare Power over Ethernet PoE HAT (F) - for Raspberry Pi 5
Waveshare Power over Ethernet PoE HAT (F) - for Raspberry Pi 5
Waveshare Power over Ethernet PoE HAT (F) - for Raspberry Pi 5
Waveshare Power over Ethernet PoE HAT (F) - for Raspberry Pi 5
Waveshare Power over Ethernet PoE HAT (F) - for Raspberry Pi 5
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005865
€19.50
Ex Tax: €16.12

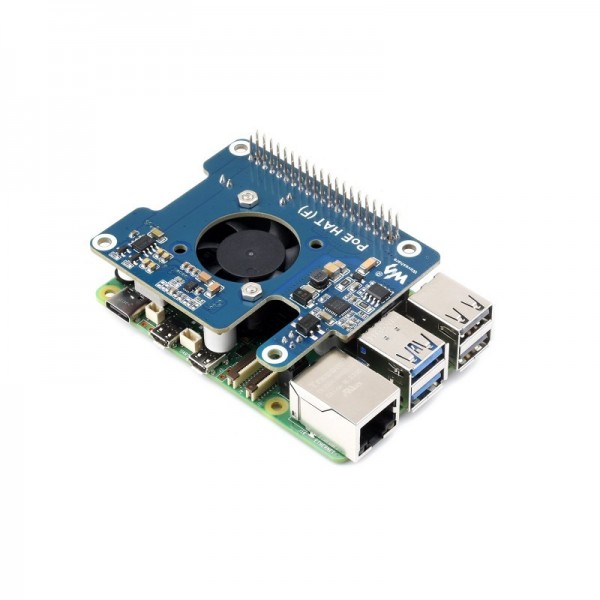

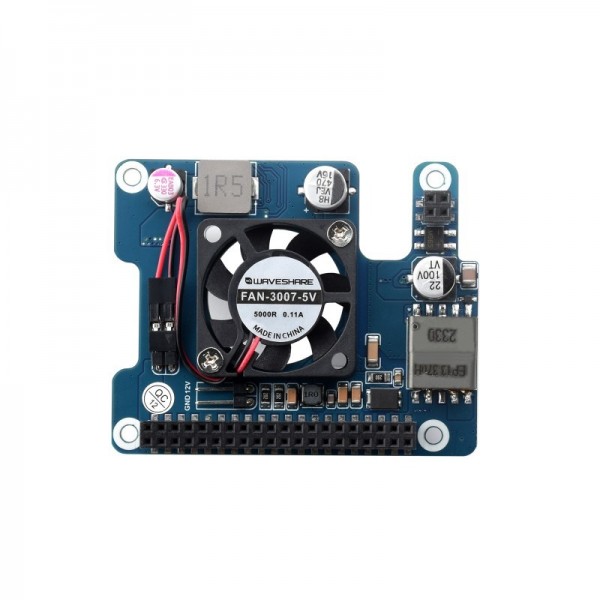

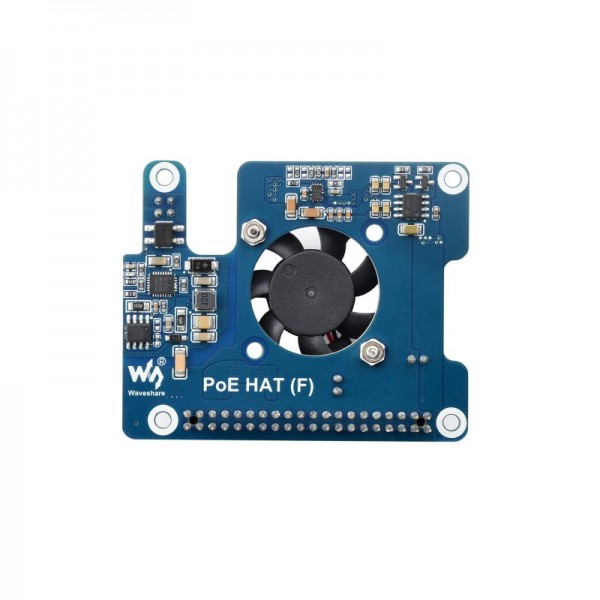

With this Power over Ethernet (PoE) HAT you can supply a Raspberry Pi with power via the ethernet connection. Additionally, there is a built-in fan for cooling the Raspberry Pi.

This module is suitable for the Raspberry Pi 5.

Note: To use the PoE function, a switch or router that supports PoE or a PoE injector is required.

Note: Raspberry Pi is not included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare Power over Ethernet PoE HAT (F) - for Raspberry Pi 5

This product has 0 review(s) in total.

Specifications

General
Brand Waveshare
Manufacturer model/SKU 26399
Features PoE
Fan
General physical appearance
Main color Blue
Weight [g] 40
Dimension X [mm] 70
Dimension Y [mm] 56
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor Raspberry Pi SBC layout/HAT
(only suitable for Raspberry Pi 5)
Voltage converter
Chip/SoC MP8009
Voltage converter type Buck
Conversion DC-DC
Isolated Yes
Output voltage type Fixed
Minimum input voltage [V DC] 37
Maximum input voltage [V DC] 57
Minimum output voltage [V DC] 5
12
Maximum output voltage [V DC] 5
12
Maximum output current [A] 4.5
(@5V)
2.0
(@12V)
Maximum output power [W] 25
(5V and 12V combined)
Safety features Short circuit
Overcurrent (output)
Temperature
Over voltage (output)
Connectors
Input voltage connector(s) Pin header female (2.54mm)
Output voltage connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
Package contents
Package contents 1x Fan
1x Power over Ethernet HAT (F)
1x Heatsink for RPi 5
3x Thermal Tape
