Waveshare Power over Ethernet PoE HAT (E) - for Raspberry Pi

Availability: Directly available from warehouse in Eindhoven
SKU: 004801

Based on 0 review(s) - Write a review

€16.00

Ex Tax: €13.22

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

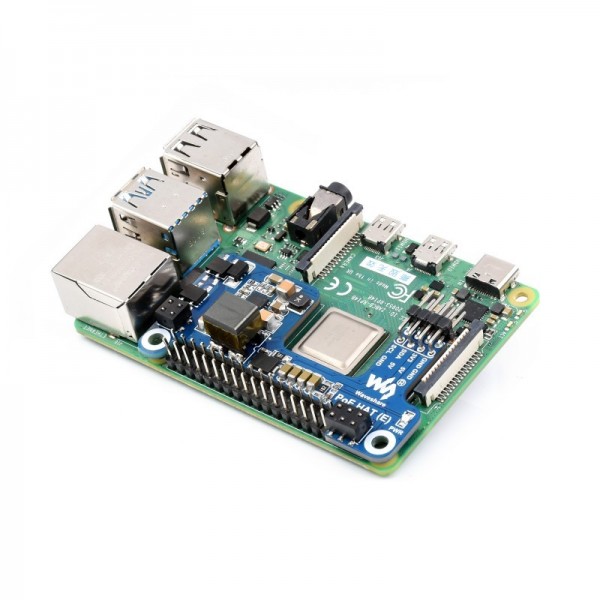

With this small Power over Ethernet (PoE) HAT you can supply a Raspberry Pi with power via the ethernet connection. Due to its small size, it fits in many standard Raspberry Pi housings.

This module is suitable for the Raspberry Pi 3B+ and 4B.

Note: To use the PoE function, a switch or router that supports PoE or a PoE injector is required.

Note: Raspberry Pi is not included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare Power over Ethernet PoE HAT (E) - for Raspberry Pi

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare Power over Ethernet PoE HAT (E) - for Raspberry Pi , WS-23285 , Modules

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	23285
Features	PoE
General physical appearance
Main color	Blue
Weight [g]	10
Dimension X [mm]	65
Dimension Y [mm]	32
Mounting options	Pin headers
Form factor	Raspberry Pi SBC layout/HAT
Voltage converter
Chip/SoC	MP8017
Voltage converter type	Buck
Conversion	DC-DC
Isolated	Yes
Output voltage type	Fixed
Minimum input voltage [V DC]	37
Maximum input voltage [V DC]	57
Minimum output voltage [V DC]	5
Maximum output voltage [V DC]	5
Maximum output current [A]	2.5
Maximum output power [W]	12.5
Connectors
Input voltage connector(s)	Pin header female (2.54mm)
Output voltage connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
Package contents
Package contents	1x Power over Ethernet HAT (E)
