Waveshare Power over Ethernet PoE HAT (D) - for Raspberry Pi

Waveshare Power over Ethernet PoE HAT (D) - for Raspberry Pi
Waveshare Power over Ethernet PoE HAT (D) - for Raspberry Pi
Waveshare Power over Ethernet PoE HAT (D) - for Raspberry Pi
Waveshare Power over Ethernet PoE HAT (D) - for Raspberry Pi
Waveshare Power over Ethernet PoE HAT (D) - for Raspberry Pi
Waveshare Power over Ethernet PoE HAT (D) - for Raspberry Pi
Waveshare Power over Ethernet PoE HAT (D) - for Raspberry Pi
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006694
€18.50
Ex Tax: €15.29

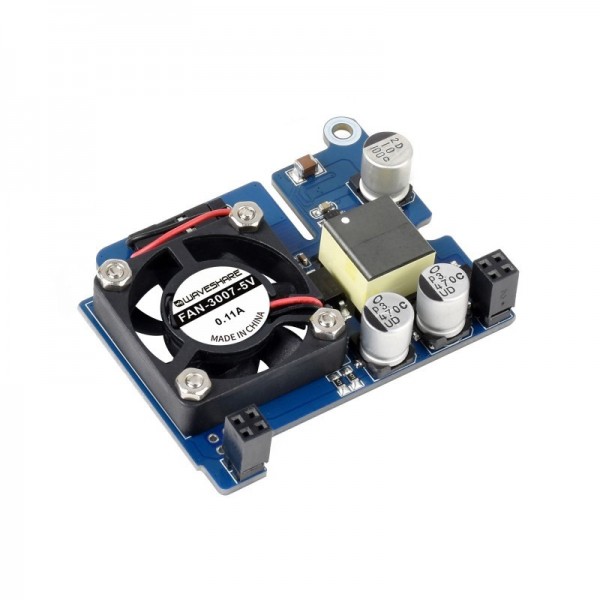

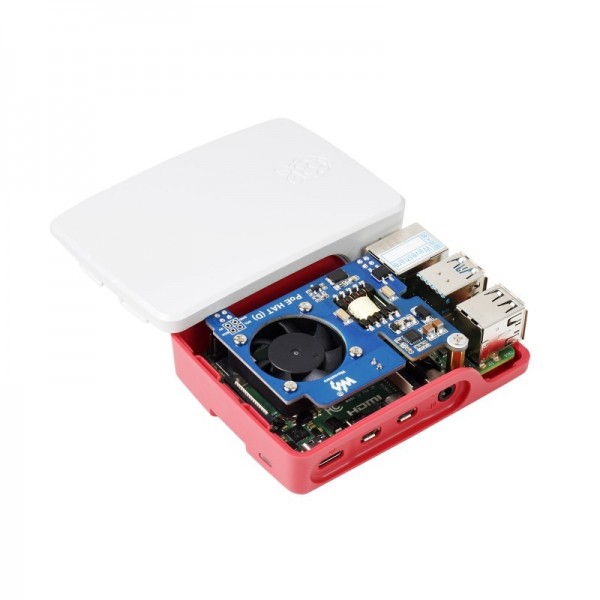

With this Power over Ethernet (PoE) HAT you can supply a Raspberry Pi with power via the ethernet connection. There is also a built-in fan for cooling the Raspberry Pi, which can be turned on with a switch. This version fits in the Official Raspberry Pi enclosure.

This module is suitable for the Raspberry Pi 3B+ and 4B.

Note: To use the PoE function, a switch or router that supports PoE or a PoE injector is required.

Note: Raspberry Pi and enclosure are not included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare Power over Ethernet PoE HAT (D) - for Raspberry Pi

This product has 0 review(s) in total.

Specifications

General
Brand Waveshare
Manufacturer model/SKU 19532
Features PoE
Fan
General physical appearance
Main color Blue
Weight [g] 27
Dimension X [mm] 59
Dimension Y [mm] 55
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor Module (general)
Raspberry Pi SBC layout/HAT
Voltage converter
Chip/SoC Si3404
Voltage converter type Buck
Conversion DC-DC
Isolated Yes
Output voltage type Fixed
Minimum input voltage [V DC] 37
Maximum input voltage [V DC] 57
Minimum output voltage [V DC] 5
Maximum output voltage [V DC] 5
Maximum output current [A] 2.5
Maximum output power [W] 12.5
Safety features Short circuit
Overcurrent (output)
Temperature
Connectors
Input voltage connector(s) Pin header female (2.54mm)
Output voltage connector(s) Pin header female (2.54mm)
Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x Power over Ethernet HAT (D)
1x Spacer
1x Bolt
