Olimex BB-PWR-8113 DC-DC Step-Down Buck Converter- 3A - 3.3V output
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005928
€4.50
Ex Tax: €3.72
Your shopping cart is empty!

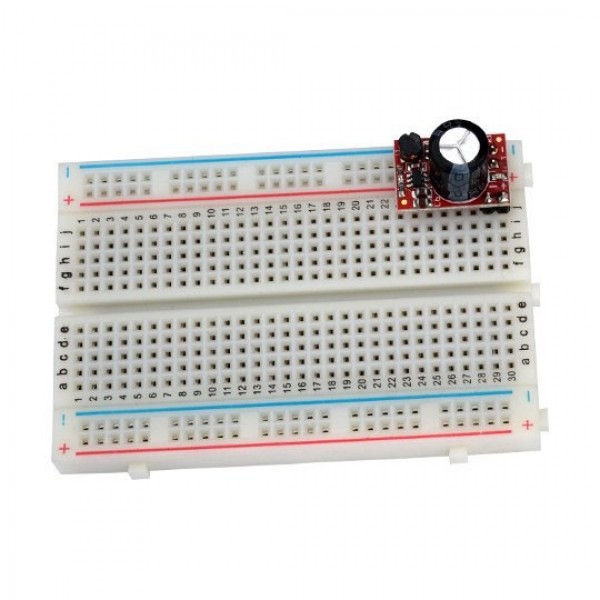

A small step-down buck converter from Olimex. Very handy to use on a breadboard (see pictures).
Note: Breadboard is not included.
Check the tab "Downloads" for more information and/or downloads.
This product has 0 review(s) in total.
Datasheet: 005928_SY8113.pdf
Schematic: 005928_BB-PWR-8113_revA-schematic.pdf
General | |
Brand | Olimex |
Manufacturer model/SKU | BB-PWR-8113 |
Model revision | A |
Norm conformity | RoHS |
Minimum operating temperature [°C] | -40 |
Maximum operating temperature [°C] | 85 |
Features | Voltage converter |
General physical appearance | |
Main color | Red |
Weight [g] | 3 |
Dimension X [mm] | 20 |
Dimension Y [mm] | 14 |
Mounting options | Pin headers |
Form factor | Module (general) |
Voltage converter | |
Chip/SoC | SY8113 |
Voltage converter type | Buck |
Conversion | DC-DC |
Switching method | Synchronous |
Isolated | No |
Soft start | Yes |
Output voltage type | Fixed |
Constant current function | No |
Maximum switching frequency [kHz] | 500 |
Minimum input voltage [V DC] | 4.5 |
Maximum input voltage [V DC] | 16 |
Minimum output voltage [V DC] | 3.3 |
Maximum output voltage [V DC] | 3.3 |
Maximum output current [A] | 3.0 |
Maximum output power [W] | 9.9 |
Safety features | Under voltage (input) Temperature |
Undervoltage locktout (UVLO) [V] | 4.5 |
Connectors | |
Input voltage connector(s) | Pin header male (2.54mm) |
Output voltage connector(s) | Pin header male (2.54mm) |
Package contents | |
Package contents | 1x Voltage converter |
