Olimex BB-PWR-8009 - DC-DC Step-down Buck Converter 1.5 A - 5V to 3.3V output

Availability: Directly available from warehouse in Eindhoven
SKU: 005832

Based on 0 review(s) - Write a review

€4.50

Ex Tax: €3.72

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

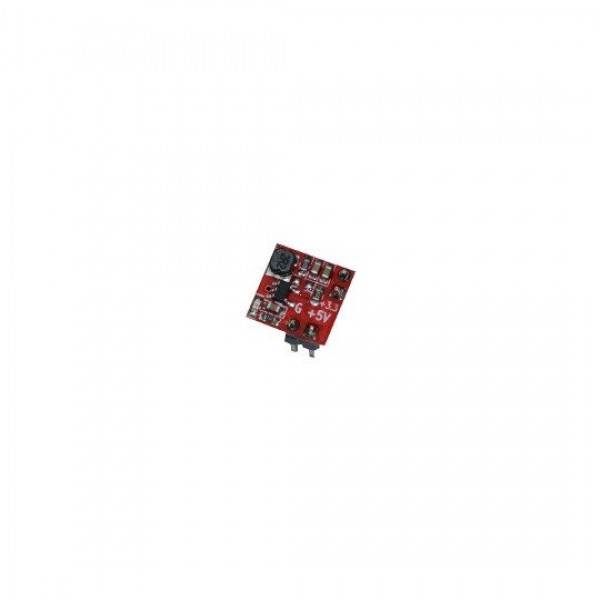

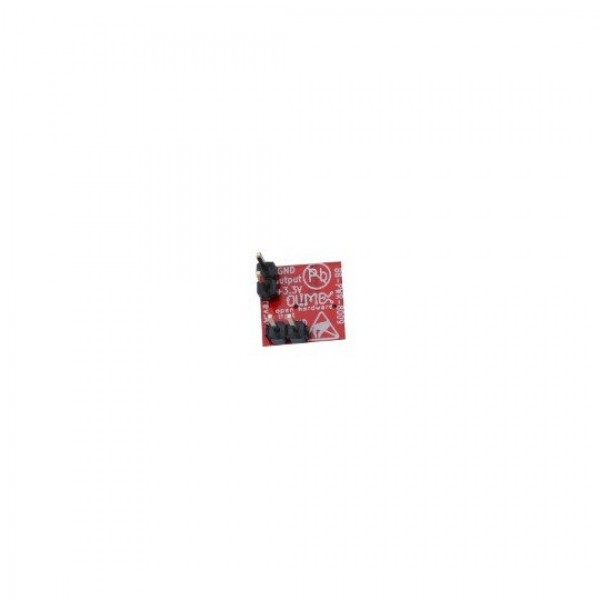

A small step-down buck converter from Olimex. Very handy to use on a breadboard (see pictures).

Note: Breadboard is not included.

See the following page for more information: GitHub

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Olimex BB-PWR-8009 - DC-DC Step-down Buck Converter 1.5 A - 5V to 3.3V output

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005832_BB-PWR-8009.pdf

Tags: Olimex BB-PWR-8009 - DC-DC Step-down Buck Converter 1.5 A - 5V to 3.3V output , OL-BB-PWR-8009 , Buck (Step-Down) Converters

Specifications

General
Brand	Olimex
Manufacturer model/SKU	BB-PWR-8009
Model revision	A
Norm conformity	RoHS
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Voltage converter
General physical appearance
Main color	Red
Weight [g]	1
Dimension X [mm]	12
Dimension Y [mm]	11
Mounting options	Pin headers
Form factor	Module (general)
Voltage converter
Chip/SoC	SY8009A
Voltage converter type	Buck
Conversion	DC-DC
Switching method	Synchronous
Isolated	No
Soft start	Yes
Output voltage type	Fixed
Constant current function	No
Maximum switching frequency [kHz]	1500
Minimum input voltage [V DC]	4.0
Maximum input voltage [V DC]	5.5
Minimum output voltage [V DC]	3.3
Maximum output voltage [V DC]	3.3
Maximum output current [A]	1.5
Maximum output power [W]	0.5
Safety features	Under voltage (input) Temperature
Undervoltage locktout (UVLO) [V]	2.7
Connectors
Input voltage connector(s)	Pin header male (2.54mm)
Output voltage connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x BB-PWR-8009
