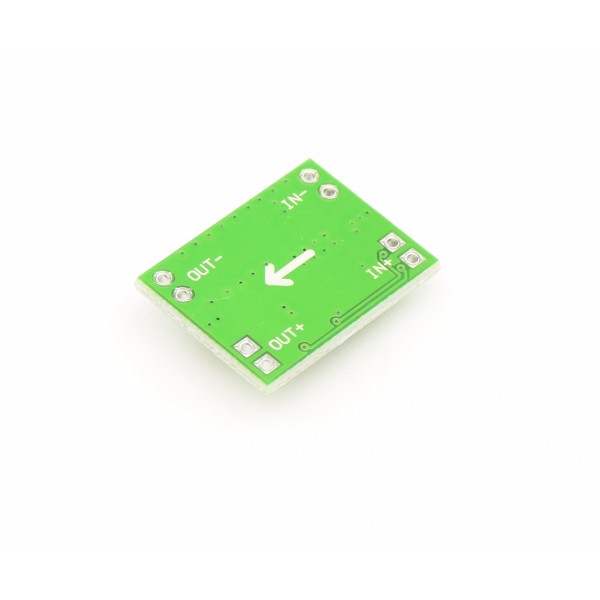

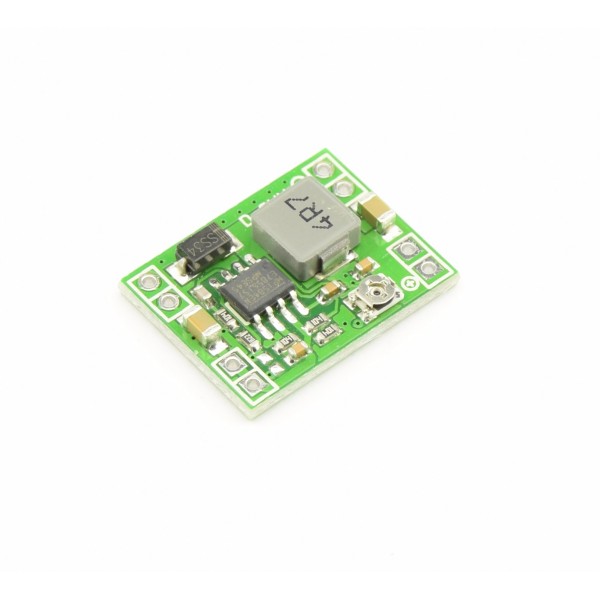

Mini DC-DC Adjustable Step-down Buck Converter 3A MP1584

Based on 0 review(s) - Write a review

€1.50

Ex Tax: €1.24

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

A very compact DC-DC step-down converter.

Tip: use extra capacitors (more than 100uF) on the input and output to produce a more stable voltage.

Please login or register to review

This product has 0 review(s) in total.

Tags: Mini DC-DC Adjustable Step-down Buck Converter 3A MP1584 , MP1584 , Buck (Step-Down) Converters

General
Brand	No brand
Minimum operating temperature [°C]	-45
Maximum operating temperature [°C]	85
Features	Voltage converter
General physical appearance
Main color	Green
Weight [g]	3
Dimension X [mm]	23
Dimension Y [mm]	17
Form factor	Module (general)
Voltage converter
Chip/SoC	MP1584
Voltage converter type	Buck
Conversion	DC-DC
Switching method	Non-synchronous
Isolated	No
Soft start	Yes
Output voltage type	Variable (continuous)
Constant current function	No
Maximum switching frequency [kHz]	900
Minimum input voltage [V DC]	4.5
Maximum input voltage [V DC]	28
Minimum output voltage [V DC]	0.8
Maximum output voltage [V DC]	20
Maximum output current [A]	3.0 (with cooling) 1.5 (without cooling)
Safety features	Overcurrent (output) Temperature
Undervoltage locktout (UVLO) [V]	3.0
Connectors
Input voltage connector(s)	Through hole solder pin(s)
Output voltage connector(s)	Through hole solder pin(s)
Package contents
Package contents	1x DC-DC buck converter
