Mini DC-DC Adjustable Step-down Buck Converter 0.5A MP2307
- Availability: Directly available from warehouse in Eindhoven
- SKU: 000584
€1.50
Ex Tax: €1.24
Your shopping cart is empty!

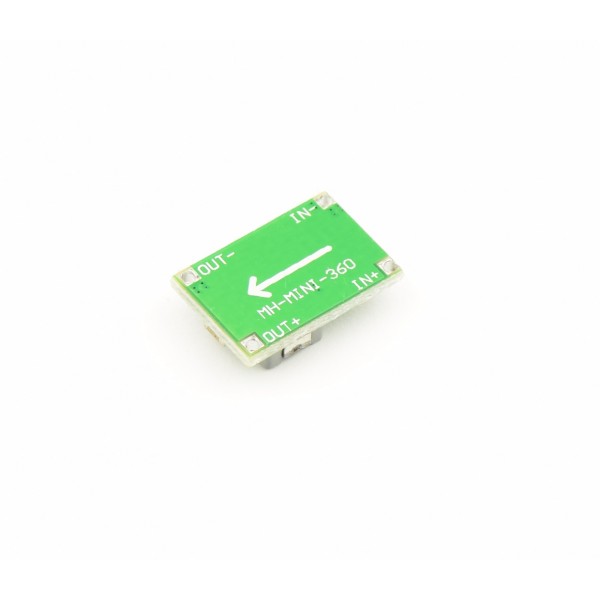

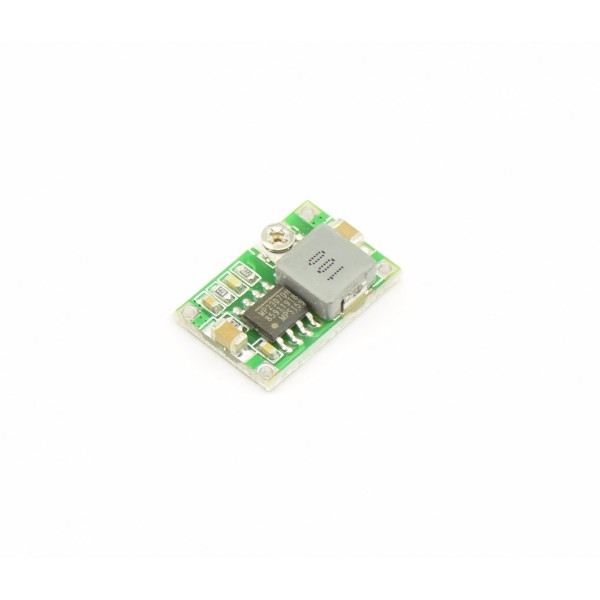

A very compact DC-DC step-down converter.
Tip: use extra capacitors (more than 100uF) on the input and output to produce a more stable voltage.
This product has 0 review(s) in total.
| General | |
| Brand | No brand |
| Features | Voltage converter |
| General physical appearance | |
| Main color | Green |
| Weight [g] | 2 |
| Dimension X [mm] | 18 |
| Dimension Y [mm] | 12 |
| Form factor | Module (general) |
| Voltage converter | |
| Chip/SoC | MP2307 |
| Voltage converter type | Buck |
| Conversion | DC-DC |
| Switching method | Synchronous |
| Isolated | No |
| Soft start | Yes |
| Output voltage type | Variable (continuous) |
| Constant current function | No |
| Maximum switching frequency [kHz] | 340 |
| Minimum input voltage [V DC] | 4.8 |
| Maximum input voltage [V DC] | 23 |
| Minimum output voltage [V DC] | 1 |
| Maximum output voltage [V DC] | 17 |
| Maximum output current [A] | 0.5 (with cooling) 0.25 (without cooling) |
| Safety features | Temperature |
| Undervoltage locktout (UVLO) [V] | 4 |
| Connectors | |
| Input voltage connector(s) | Through hole solder pin(s) |
| Output voltage connector(s) | Through hole solder pin(s) |
| Package contents | |
| Package contents | 1x DC-DC buck converter |
