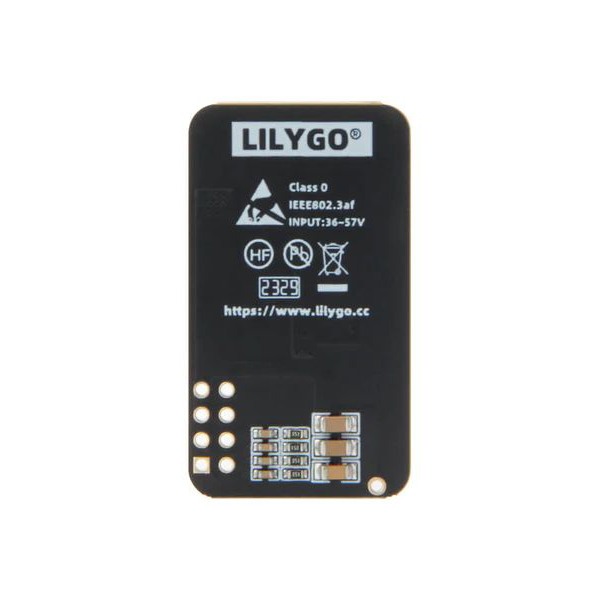

LilyGO T-ETH Lite PoE Shield

LilyGO T-ETH Lite PoE Shield
LilyGO T-ETH Lite PoE Shield
LilyGO T-ETH Lite PoE Shield
LilyGO T-ETH Lite PoE Shield
LilyGO T-ETH Lite PoE Shield
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005946
€12.50
Ex Tax: €10.33

The LilyGO T-ETH Lite PoE shield is compatible with all versions of the LilyGO T-ETH Lite.

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T-ETH Lite PoE Shield

This product has 0 review(s) in total.

Specifications

General
Brand LilyGO TTGO
Manufacturer model/SKU H675
Features PoE
General physical appearance
Main color Black
Weight [g] 8
Dimension X [mm] 40
Dimension Y [mm] 23
Voltage converter
Chip/SoC DP9900
Voltage converter type Buck
Conversion DC-DC
Isolated Yes
Output voltage type Fixed
Minimum input voltage [V DC] 37
Maximum input voltage [V DC] 57
Minimum output voltage [V DC] 5
Maximum output voltage [V DC] 5
Maximum output current [A] 1.8
Maximum output power [W] 9
Connectors
Input voltage connector(s) RJ45 female
Output voltage connector(s) Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x T-ETH PoE Shield
1x Female pin header 2x4p
