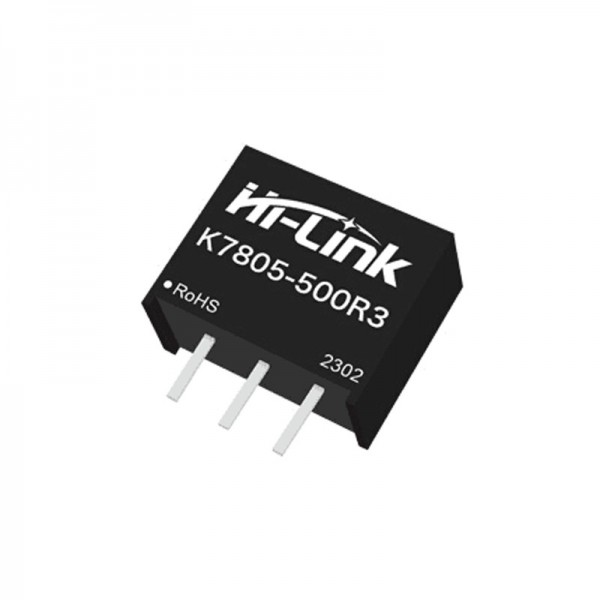

Hi-Link DC-DC Voltage Converter - 5V 500mA - HLK-K7805-500R3

Hi-Link DC-DC Voltage Converter - 5V 500mA - HLK-K7805-500R3
2-4 Weeks
Hi-Link DC-DC Voltage Converter - 5V 500mA - HLK-K7805-500R3
  • Availability: 2-4 Weeks
  • SKU: 006551
Based on 0 review(s) - Write a review
€3.00
Ex Tax: €2.48
Add to Cart
Add to wishlist

A small DC-DC converter the size of and with the same pinout as an LM708x linear regulator. This converter can usually be used as a direct replacement. Compared to a linear regulator, this converter converts the voltage much more efficiently. To make the converter work properly, only a 10uF capacitor is needed on the input and a 22uF on the output. See the datasheet for an example circuit.

In addition to a positive voltage, this converter can also create a negative voltage, see the datasheet for more information about this.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Hi-Link DC-DC Voltage Converter - 5V 500mA - HLK-K7805-500R3

This product has 0 review(s) in total.

Tags: Voltage Converters , Buck (Step-Down) Converters , Hi-Link DC-DC Voltage Converter - 5V 500mA - HLK-K7805-500R3 , 006551 , Hi-Link , HLK-K7805-500R3 , Voltage converter

Specifications

General
Brand Hi-Link
Manufacturer model/SKU HLK-K7805-500R3
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Voltage converter
General physical appearance
Main color Black
Weight [g] 2
Dimension X [mm] 12
Dimension Y [mm] 10
Dimension Z [mm] 7.6
Mounting options THT
Form factor Individual component
Experiment PCB friendly Yes
Voltage converter
Voltage converter type Buck
Conversion DC-DC
Switching method Non-synchronous
Isolated No
Output voltage type Fixed
Constant current function No
Maximum switching frequency [kHz] 850
Minimum input voltage [V DC] 6.5
Maximum input voltage [V DC] 36
Minimum output voltage [V DC] 5
Maximum output voltage [V DC] 5
Maximum output current [A] 0.5
Maximum output power [W] 2.5
Maximum output ripple [mVp-p] 75
(max)
20
(typical)
Line regulation [%] 0.2
Load regulation [%] 0.6
Safety features Short circuit
Connectors
Input voltage connector(s) Solder pin(s) (THT)
Output voltage connector(s) Solder pin(s) (THT)
Pin distance [mm] 2.54
Package contents
Package contents 1x DC-DC buck converter
