Name: DC-DC Buck Converter 7-24V to 5V 4A - DFROBOT-DFR0831
Brand: DFRobot
SKU: 004114
Price: 6 EUR
Availability: InStock

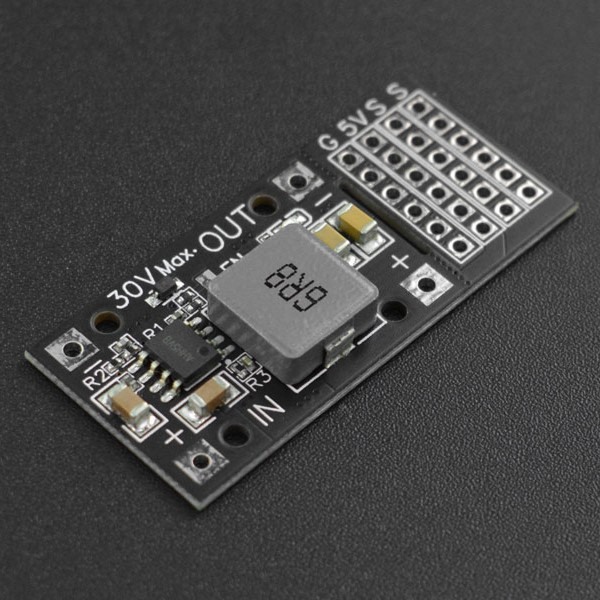

DC-DC Buck Converter 7-24V to 5V 4A

Based on 0 review(s) - Write a review

€6.00

Ex Tax: €4.96

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: DC-DC Buck Converter 7-24V to 5V 4A , DFROBOT-DFR0831 , Buck (Step-Down) Converters

General
Brand	No brand
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Voltage converter
General physical appearance
Main color	Black
Weight [g]	4

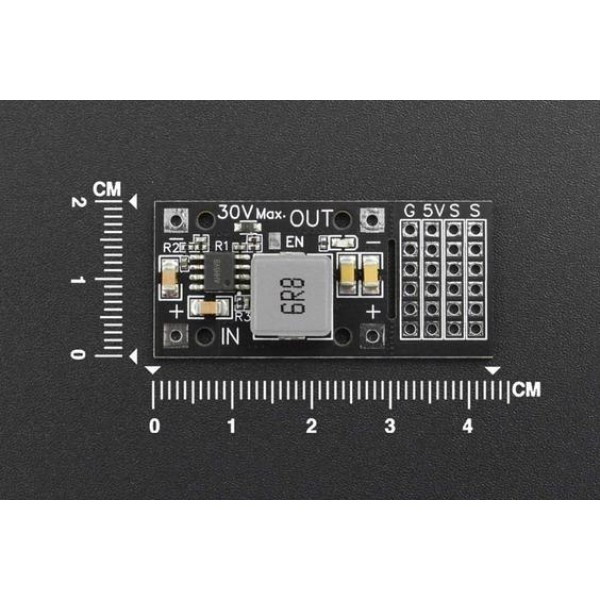

Dimension X [mm]	44
Dimension Y [mm]	21
Mounting options	Mounting hole(s)
Form factor	Module (general)
Voltage converter
Voltage converter type	Buck
Conversion	DC-DC
Switching method	Synchronous
Isolated	No
Output voltage type	Fixed
Constant current function	No
Minimum input voltage [V DC]	7.0
Maximum input voltage [V DC]	24
Minimum output voltage [V DC]	5
Maximum output voltage [V DC]	5
Maximum output current [A]	4.0
Maximum output power [W]	20
Maximum output ripple [mVp-p]	100
Connectors
Input voltage connector(s)	Through hole solder pin(s)
Output voltage connector(s)	Through hole solder pin(s)
Package contents
Package contents	1x DC-DC buck converter
