A step-down DC-DC converter where the output voltage can easily be changed with a DIP switch.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DFRobot DC-DC Adjustable Step-down Buck Converter 18A - 0.6-5.1V

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005088_NAE12S20-C_datasheet.pdf

Tags: DFRobot DC-DC Adjustable Step-down Buck Converter 18A - 0.6-5.1V , DFROBOT-DFR1025 , Buck (Step-Down) Converters

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	DFR1025
Features	Voltage converter
General physical appearance
Main color	Black
Weight [g]	10

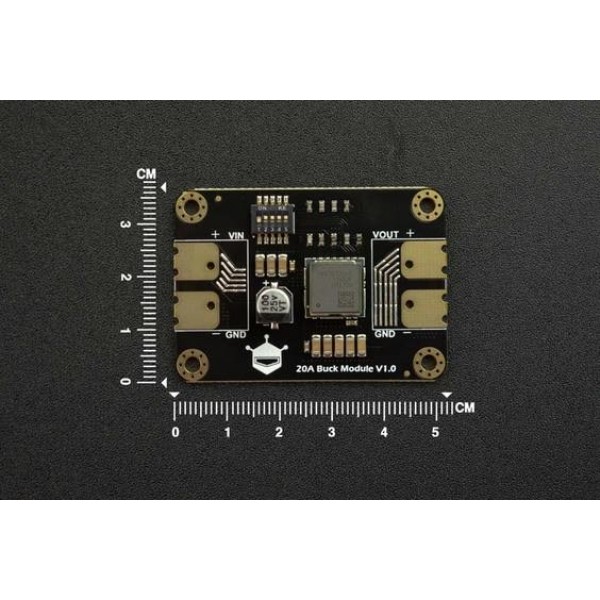

Dimension X [mm]	52
Dimension Y [mm]	37
Mounting options	SMT Mounting hole(s)
Form factor	Module (general)
Voltage converter
Chip/SoC	NAE12S20-C
Voltage converter type	Buck
Conversion	DC-DC
Isolated	No
Soft start	Yes
Output voltage type	Variable (discrete)
Constant current function	No
Maximum switching frequency [kHz]	1000
Minimum input voltage [V DC]	9.0
Maximum input voltage [V DC]	15
Minimum output voltage [V DC]	0.6
Maximum output voltage [V DC]	5.1

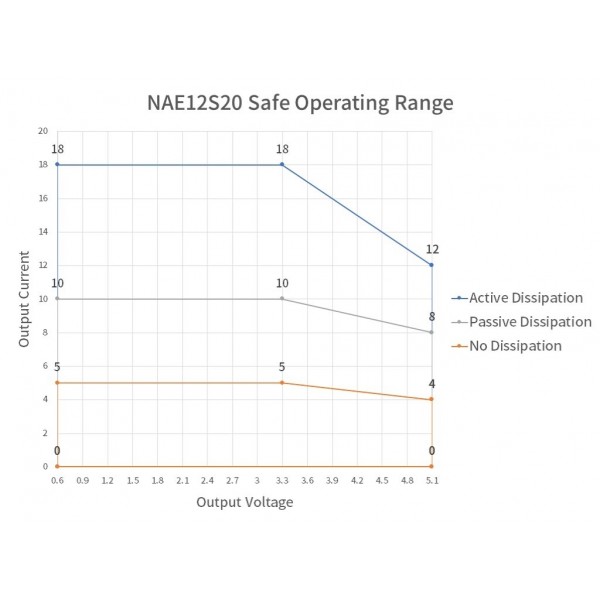

Maximum output current [A]	18 (with active cooling)
Maximum output power [W]	60 (with active cooling)
Safety features	Short circuit Under voltage (input) Overcurrent (output) Temperature Over voltage (output)
Undervoltage locktout (UVLO) [V]	See datasheet under the tab 'Downloads'
Connectors
Input voltage connector(s)	Solder pin(s) (SMT) Through hole solder pin(s)
Output voltage connector(s)	Solder pin(s) (SMT) Through hole solder pin(s)
Package contents

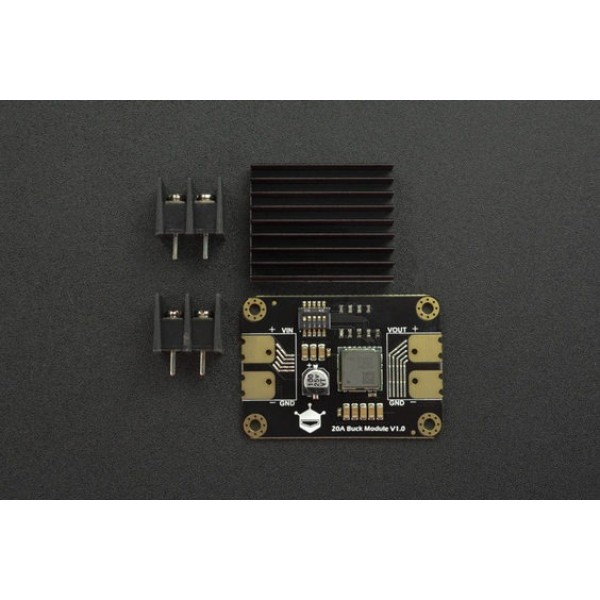

Package contents	1x 60W DC-DC Converter 2x Barrier strip screw terminal 2p 1x Aluminium heatsink
