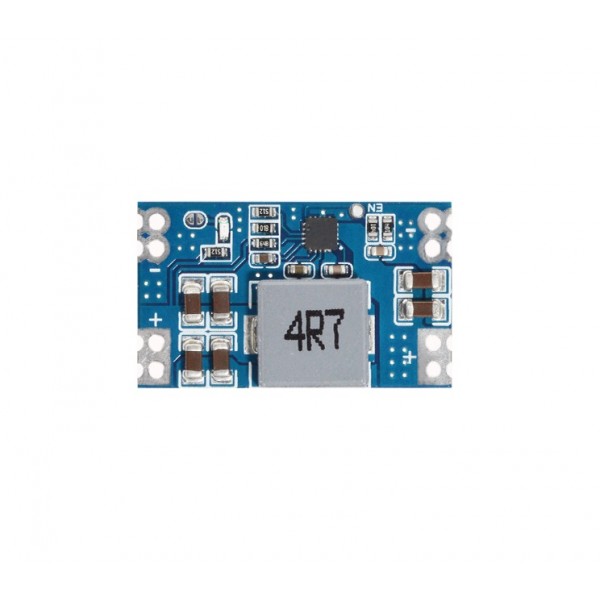

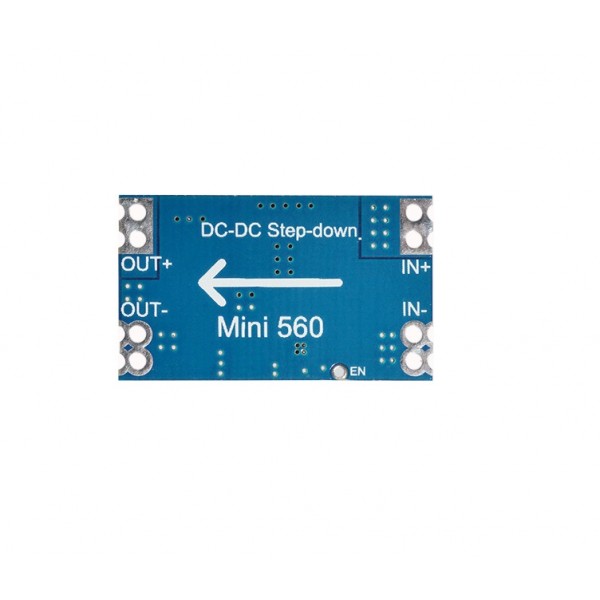

DC-DC Step-down Buck Converter 4A - 9V output

Based on 0 review(s) - Write a review

€3.00

Ex Tax: €2.48

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A step-down converter, always handy for a hobby project!

Please login or register to review

This product has 0 review(s) in total.

Tags: DC-DC Step-down Buck Converter 4A - 9V output , DCDCSTEPDOWN4A9V , Buck (Step-Down) Converters

General
Brand	No brand
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Voltage converter
General physical appearance
Main color	Blue
Weight [g]	5
Dimension X [mm]	30
Dimension Y [mm]	18
Mounting options	SMT
Form factor	Module (general)
Voltage converter
Voltage converter type	Buck
Conversion	DC-DC
Switching method	Synchronous
Isolated	No
Output voltage type	Fixed
Constant current function	No
Maximum switching frequency [kHz]	500
Minimum input voltage [V DC]	11
Maximum input voltage [V DC]	20
Minimum output voltage [V DC]	9 (±0.15)
Maximum output voltage [V DC]	9 (±0.15)
Maximum output current [A]	4.0 (with cooling) 3.0 (without cooling)
Maximum output power [W]	36
Maximum output ripple [mVp-p]	70
Connectors
Input voltage connector(s)	Solder pin(s) (SMT) Through hole solder pin(s)
Output voltage connector(s)	Solder pin(s) (SMT) Through hole solder pin(s)
Package contents
Package contents	1x DC-DC buck converter
