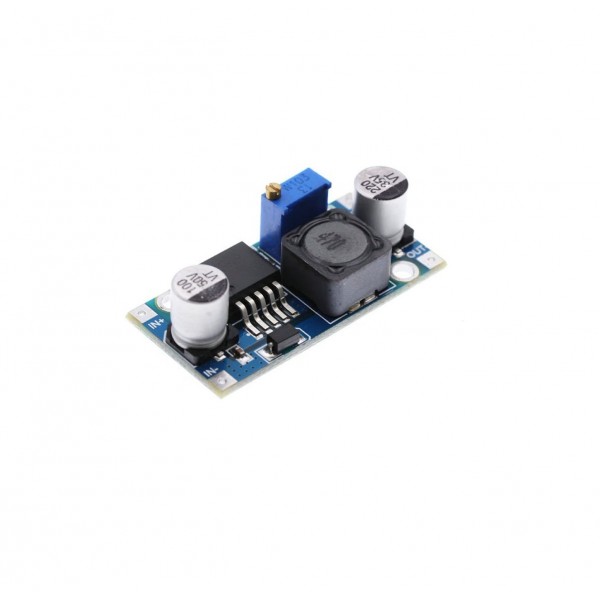

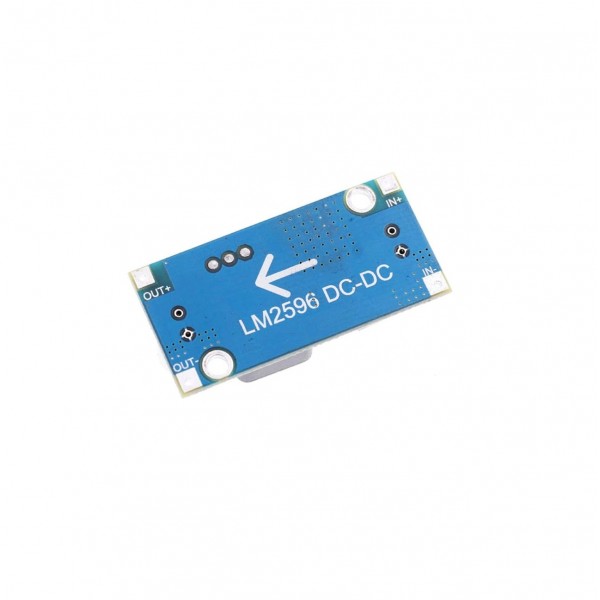

DC-DC Adjustable Step-down Buck Converter LM2596 3A

Availability: Directly available from warehouse in Eindhoven
SKU: 000073

Based on 2 review(s) - Write a review

€3.00

Ex Tax: €2.48

10 or more €2.75

20 or more €2.50

50 or more €2.25

100 or more €2.00

200 or more €1.75

500 or more €1.50

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

Description
Reviews

A step-down converter can be used to easily lower the voltage in an efficient way.

Note: The potentiometer has several turns. So it may take a while before you have the desired voltage set correctly. You can rotate the potentiometer around 25x from start to finish.

Please login or register to review

Reviews Over DC-DC Adjustable Step-down Buck Converter LM2596 3A

Average Rating:

This product has 2 review(s) in total.

Tags: DC-DC Adjustable Step-down Buck Converter LM2596 3A , LM2596 , Buck (Step-Down) Converters

Specifications

General
Brand	No brand
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Voltage converter
General physical appearance
Main color	Blue
Weight [g]	11
Dimension X [mm]	44
Dimension Y [mm]	22
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3
Form factor	Module (general)
Voltage converter
Chip/SoC	LM2596
Voltage converter type	Buck
Conversion	DC-DC
Switching method	Non-synchronous
Isolated	No
Soft start	Yes
Output voltage type	Variable (continuous)
Constant current function	No
Maximum switching frequency [kHz]	150
Minimum input voltage [V DC]	4.0
Maximum input voltage [V DC]	40
Minimum output voltage [V DC]	1.3
Maximum output voltage [V DC]	35
Maximum switching current [A]	3.0
Maximum output current [A]	3.0 (with cooling) 1.0 (without cooling)
Maximum output ripple [mVp-p]	30
Safety features	Overcurrent (output) Temperature
Connectors
Input voltage connector(s)	Through hole solder pin(s)
Output voltage connector(s)	Through hole solder pin(s)
Package contents
Package contents	1x DC-DC buck converter
