Name: DC-DC Adjustable Step-down Buck Converter XL4015 5A - with Current Limiter - XL4015CC
SKU: 003615
Price: 4.5 EUR
Availability: InStock

DC-DC Adjustable Step-down Buck Converter XL4015 5A - with Current Limiter

Availability: Directly available from warehouse in Eindhoven
SKU: 003615

Based on 0 review(s) - Write a review

€4.50

Ex Tax: €3.72

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

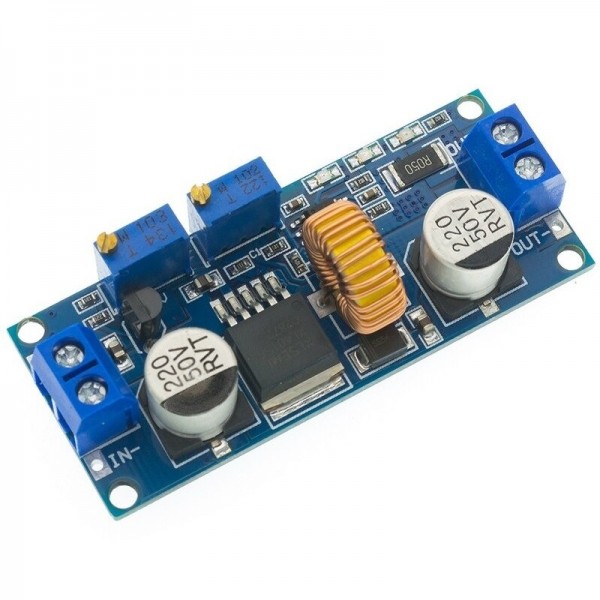

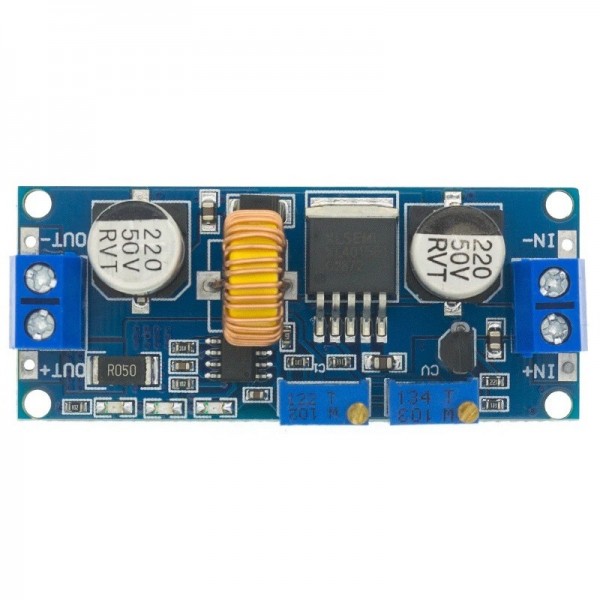

An adjustable step-down (buck) converter which can be used to lower the voltage of another voltage source. In addition, this module also has an adjustable current limiter.

Indication LEDs:

Red: Constant output current (current limiter enabled)
Blue: Constant output voltage
Green: Output current below 400mA

Note: The module uses a low-side current measurement, so the ground of the input and output are not the same.

Note: The potentiometers can rotate approximately 25x (about 50 hand turns) from start to finish. It can therefore take a while before the desired output voltage/current is reached.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DC-DC Adjustable Step-down Buck Converter XL4015 5A - with Current Limiter

Average Rating:

This product has 0 review(s) in total.

Datasheet: 003615_xl4015-datasheet.pdf

Tags: DC-DC Adjustable Step-down Buck Converter XL4015 5A - with Current Limiter , XL4015CC , Buck (Step-Down) Converters

Specifications

General
Brand	No brand
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Voltage converter
General physical appearance
Main color	Blue
Weight [g]	20
Dimension X [mm]	62
Dimension Y [mm]	26
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3
Form factor	Module (general)
Voltage converter
Chip/SoC	XL4015
Voltage converter type	Buck
Conversion	DC-DC
Switching method	Non-synchronous
Isolated	No
Output voltage type	Variable (continuous)
Constant current function	Yes, adjustable
Maximum switching frequency [kHz]	180 (±36)
Minimum input voltage [V DC]	8.0
Maximum input voltage [V DC]	36
Minimum output voltage [V DC]	1.3
Maximum output voltage [V DC]	35
Maximum switching current [A]	7.0
Maximum output current [A]	5.0 (For continuous output current above 3A, cooling is required).
Maximum output power [W]	75 (For continuous output power above 35W, cooling is required).
Safety features	Short circuit Overcurrent (output) Temperature
Connectors
Input voltage connector(s)	Screw terminal Through hole solder pin(s)
Output voltage connector(s)	Screw terminal Through hole solder pin(s)
Package contents
Package contents	1x DC-DC buck converter
