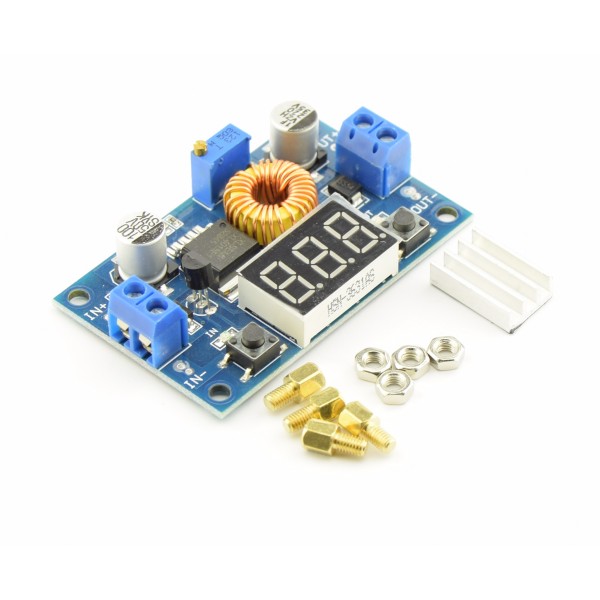

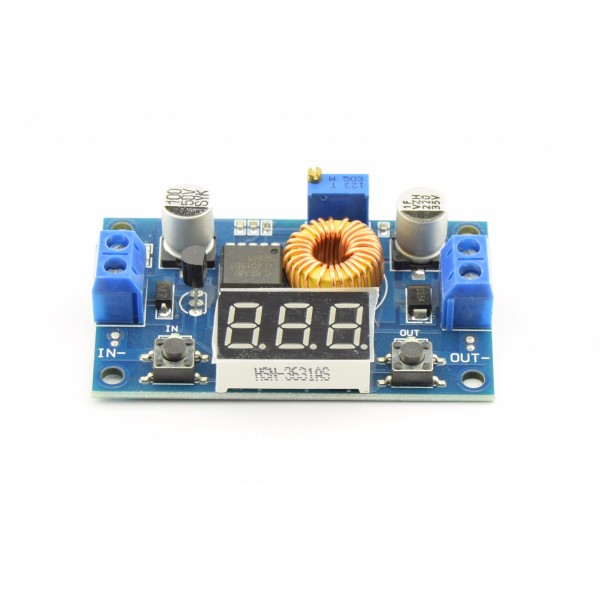

DC-DC Adjustable Step-down Buck Converter XL4015 4A - with voltage meter

DC-DC Adjustable Step-down Buck Converter XL4015 4A - with voltage meter
DC-DC Adjustable Step-down Buck Converter XL4015 4A - with voltage meter
DC-DC Adjustable Step-down Buck Converter XL4015 4A - with voltage meter
DC-DC Adjustable Step-down Buck Converter XL4015 4A - with voltage meter
DC-DC Adjustable Step-down Buck Converter XL4015 4A - with voltage meter
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 000581
€7.00
Ex Tax: €5.79
10 or more €6.50
20 or more €6.00
50 or more €5.50
100 or more €5.00

A step-down converter with a handy built-in voltmeter for both the input voltage and the output voltage.

Working voltage meter:

  • Left button (on "IN" side): Turning the voltmeter on and off
  • Right button (on "OUT" side): Perform voltage measurement on input voltage or output voltage.
  • LEDs at IN and OUT: indicate which voltage is being measured at that moment.
  • The voltage is indicated with a decimal point.
  • Accuracy: ±0.2V (factory specification)
  • Can only be used for a long time with an input voltage of 15V or lower.Above 15V, we recommend using the voltmeter for less than one minute.

Note: The potentiometer is several turns. So it may take a while before your will have reached the desired voltage. The potentiometer can rotate about 25x from start to finish

Please login or register to review

Reviews Over DC-DC Adjustable Step-down Buck Converter XL4015 4A - with voltage meter

This product has 0 review(s) in total.

Specifications

General
Brand No brand
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Display
Voltage converter
Voltage sensor
General physical appearance
Main color Blue
Weight [g] 24
Dimension X [mm] 61
Dimension Y [mm] 37
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3.2
Form factor Module (general)
Voltage converter
Chip/SoC XL4015
Voltage converter type Buck
Conversion DC-DC
Switching method Non-synchronous
Isolated No
Output voltage type Variable (continuous)
Constant current function No
Maximum switching frequency [kHz] 180
(±36)
Minimum input voltage [V DC] 8.0
Maximum input voltage [V DC] 36
Minimum output voltage [V DC] 1.3
Maximum output voltage [V DC] 35
Maximum switching current [A] 7.0
Maximum output current [A] 4.0
(with cooling)
3.0
(without cooling)
Safety features Short circuit
Temperature
Connectors
Input voltage connector(s) Screw terminal
Through hole solder pin(s)
Output voltage connector(s) Screw terminal
Through hole solder pin(s)
Package contents
Package contents 1x Heatsink
