Name: DC-DC Adjustable Step-down Buck Converter 5A - 3.3V-5V-9V-12V - DFROBOT-DFR1015
Brand: DFRobot
SKU: 004606
Price: 7 EUR
Availability: InStock

DC-DC Adjustable Step-down Buck Converter 5A - 3.3V-5V-9V-12V

Availability: Directly available from warehouse in Eindhoven
SKU: 004606

Based on 0 review(s) - Write a review

€7.00

Ex Tax: €5.79

10 or more €6.75

20 or more €6.50

50 or more €6.25

100 or more €6.00

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Description
Reviews

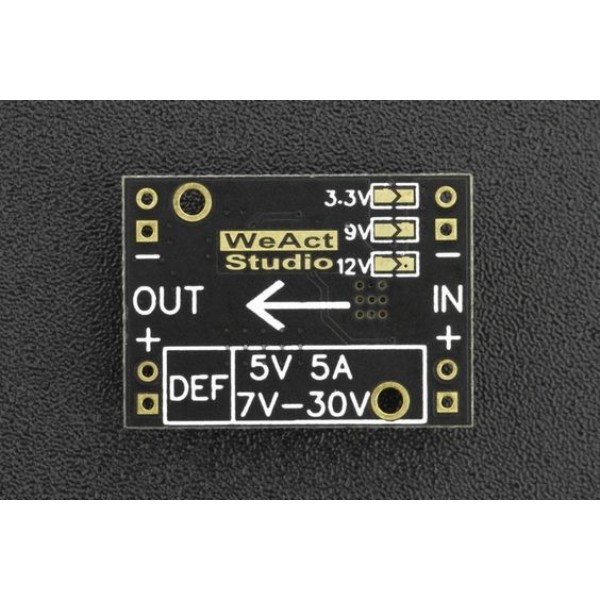

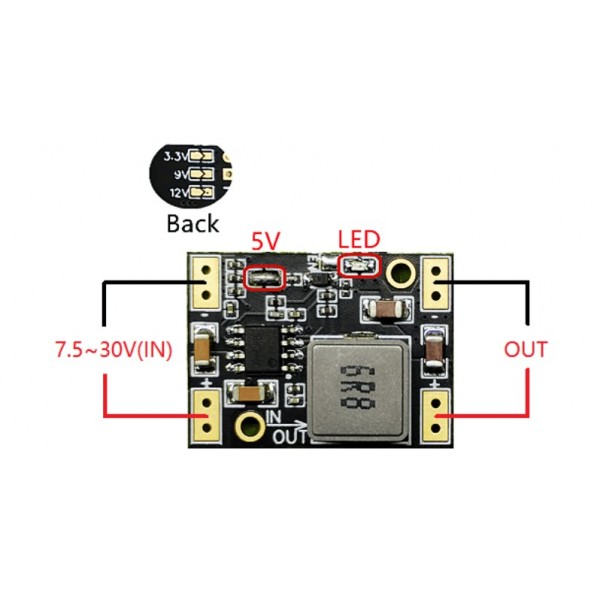

A step-down converter where the output voltage can be changed by shorting a solder connection, the converter is set to 5V by default. To set a different voltage, the 5V connection (see photos) must first be removed before connecting the soldering pad of the desired voltage.

Please login or register to review

Reviews Over DC-DC Adjustable Step-down Buck Converter 5A - 3.3V-5V-9V-12V

Average Rating:

This product has 0 review(s) in total.

Tags: DC-DC Adjustable Step-down Buck Converter 5A - 3.3V-5V-9V-12V , DFROBOT-DFR1015 , Buck (Step-Down) Converters

Specifications

General
Brand	No brand
Features	Voltage converter
General physical appearance
Main color	Black
Weight [g]	4

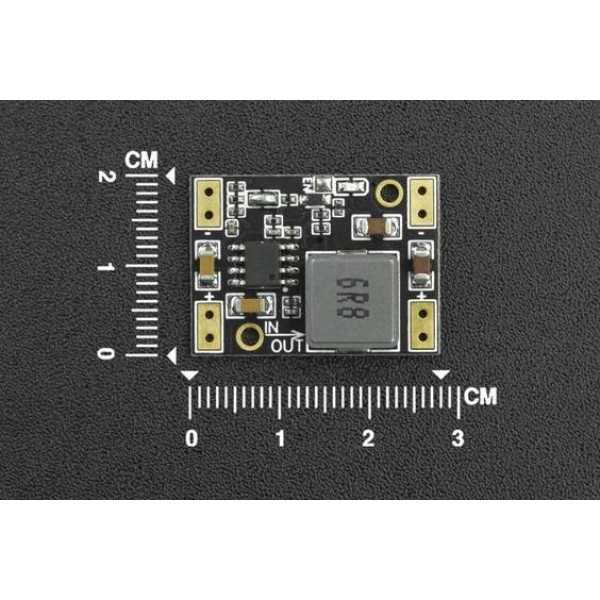

Dimension X [mm]	27
Dimension Y [mm]	20
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2
Form factor	Module (general)
Voltage converter
Voltage converter type	Buck
Conversion	DC-DC
Switching method	Synchronous
Isolated	No
Output voltage type	Variable (discrete)
Constant current function	No
Maximum switching frequency [kHz]	500
Minimum input voltage [V DC]	7.5
Maximum input voltage [V DC]	30
Minimum output voltage [V DC]	3.3
Maximum output voltage [V DC]	12
Minimum input and output voltage difference [V DC]	2
Maximum output current [A]	5.0 (with cooling) 3.0 (without cooling)
Maximum output power [W]	60 (@12V with cooling)
Maximum output ripple [mVp-p]	30
Safety features	Overcurrent (output) Temperature
Connectors
Input voltage connector(s)	Through hole solder pin(s) (2.54mm)
Output voltage connector(s)	Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x DC-DC buck converter
