DC-DC Step-up Boost Converter - 2A - 5V Output

A small boost converter with an output voltage of 5V. This converter is ideal to use in combination with a Li-ion or Li-Po battery.

Specifications:

• Input voltage: 2.7 - 5V DC*
• Output voltage: 5V DC
• Maximum output current: 2A
• Maximum output ripple: 80mV
• Switching frequency: 600kHz
• Module type: Non-isolated boost (step-up)
• Protection features:
  • Short circuit protection: No
  • Polarity protection: No (so pay close attention to the + and - when connecting the module)
  • Thermal protection: Yes (output is automatically turned off when overheated)

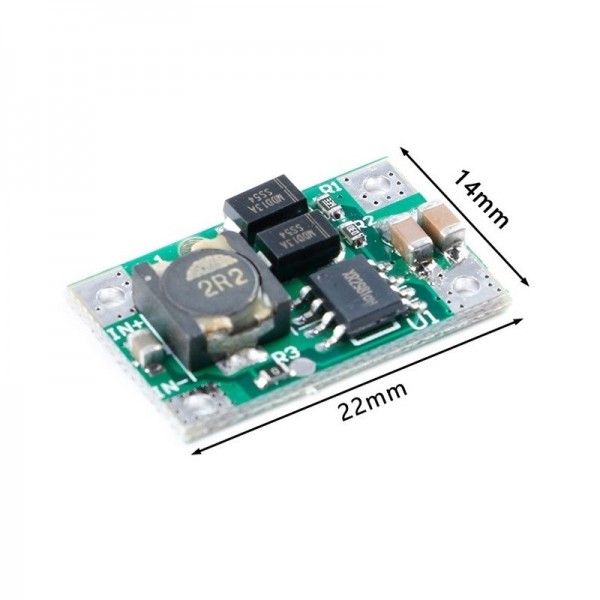

• Dimensions: See images

Package contents:

• 1x DC-DC Step-up Boost Converter 2A - 5V Output

Note: When the input voltage falls below 2.7V, the input voltage must first rise above 3.2V to get an output voltage of 5V.
