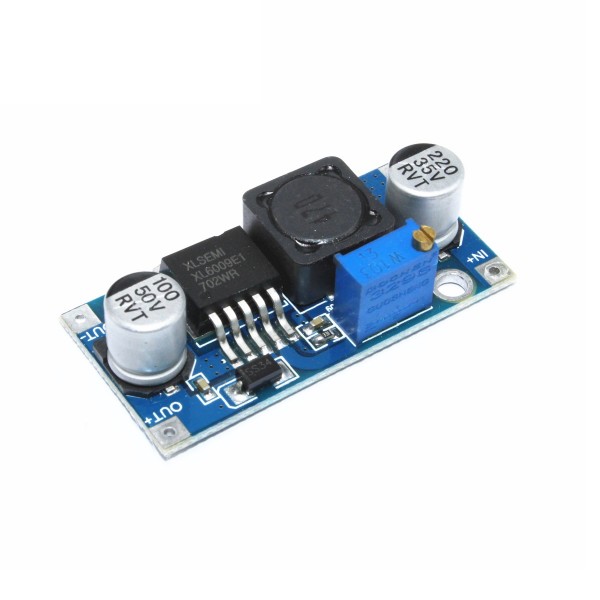

DC-DC Adjustable Step-up Boost Converter XL6009 4A

A step-up converter can be used to easily increase the voltage in an efficient way.

Specifications:

• Module type: Non-isolated step-up (Boost)
• Rectification: Non-synchronous rectification
• Input voltage: 5V-32V
• Output voltage: 5V-35V
• Input current: 4A (max), No-load current18mA (4A requires cooling)
• Conversion-efficiency: 94% (highest)
• Switching frequency: 400KHz
• Output ripple: 50mV (max, factory specification)
• Load regulation: ± 0,5%
• Voltage regulation: ± 0,5%
• Operating temperature: -40 °C tot +85 °C
• Dimensions: 43 x 21 x 14 mm
• Short circuit protection: None

Note: The potentiometer can turn about 25 times from start to finish. Therefore, it can take a while before you reach the desired voltage.

Note: It is possible that the picture doesn't match with the product. However, the product will be similar.
