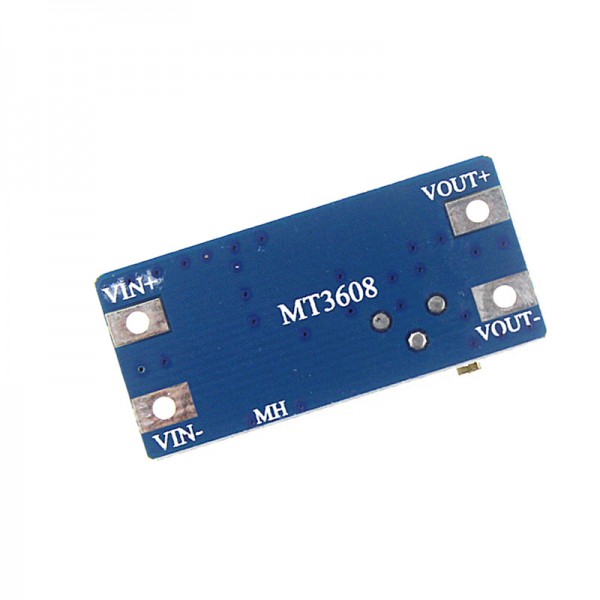

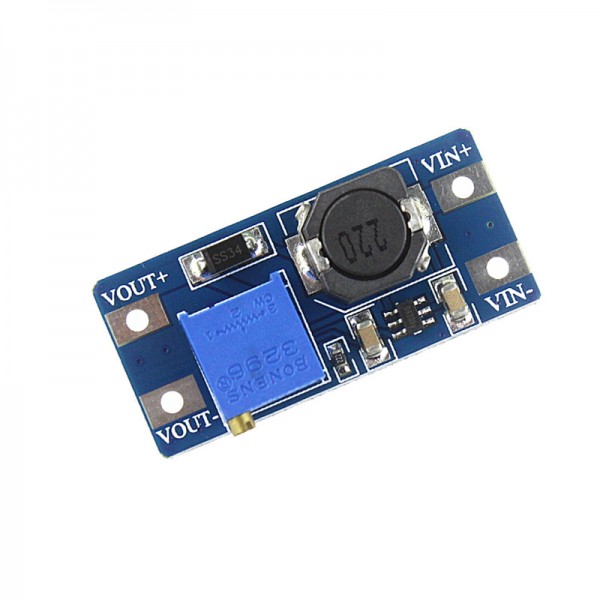

DC-DC Adjustable Step-up Boost Converter MT3608 2A

A step-up converter, always useful for a hobby project!

Specifications:

• Input voltage: 2V-24V DC*
• Output voltage: 5V-28V DC
• Output current: 2A (max), 1A (recommended), <100mA (input <4.0V), <50mA (input <3.5V)
• Module type: Non-isolated step-up (boost)
• Rectification: Non-synchronous rectification
• Conversion efficiency: 96% (highest)
• Switching frequency: 1.2MHz
• Maximum output ripple: 100mV (factory specification)
• Load regulation: ±0.5%
• Voltage regulation: ±0.5%
• Short circuit protection: No
• Working temperature: -45°C to +85°C
• Dimensions PCB: 37 x 17mm

Package contents:

• 1x Step Up Boost Converter MT3608 - with Micro USB

*Note: When using an input voltage of 5V DC or higher, first set the output voltage with 5V DC or lower on the input (with a voltage of more than 5V DC and the wrong position of the potentiometer, the chip can burn out).

Note: The potentiometer can rotate approximately 25 times (approximately 50 hand turns) from start to finish. So it may take a while before the desired voltage is reached.
