Name: DC-DC Adjustable Step-Up Boost Converter 1.6A - 5V-8V-9V-12V - 5 Pieces - DFROBOT-DFR0952
Brand: DFRobot
SKU: 004611
Price: 8.5 EUR
Availability: InStock
Rating: 5 (1 reviews)

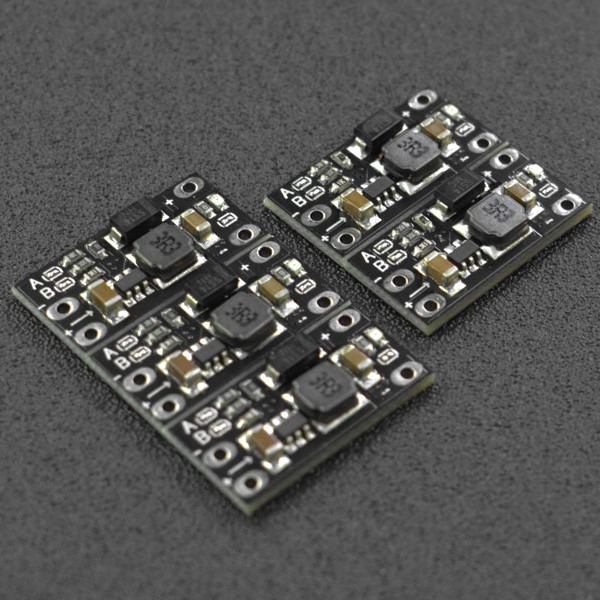

DC-DC Adjustable Step-Up Boost Converter 1.6A - 5V-8V-9V-12V - 5 Pieces

Availability: Directly available from warehouse in Eindhoven
SKU: 004611

Based on 1 review(s) - Write a review

€8.50

Ex Tax: €7.02

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

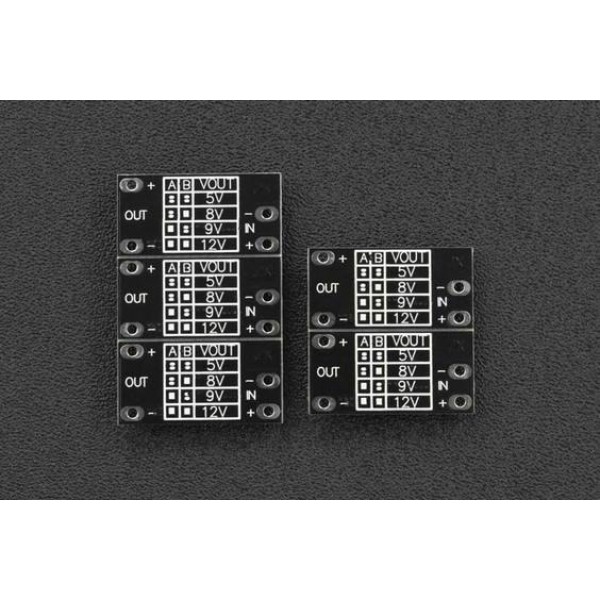

A step-up converter where the output voltage can be changed by adjusting solder joints, the converter is set to 12V by default. To set a lower voltage, 0Ω resistors can be removed.

Please login or register to review

Reviews Over DC-DC Adjustable Step-Up Boost Converter 1.6A - 5V-8V-9V-12V - 5 Pieces

Average Rating:

This product has 1 review(s) in total.

Tags: DC-DC Adjustable Step-Up Boost Converter 1.6A - 5V-8V-9V-12V - 5 Pieces , DFROBOT-DFR0952 , Boost (Step-Up) Converters

Specifications

General
Brand	No brand
Features	Voltage converter
General physical appearance
Main color	Black
Weight [g]	1
Dimension X [mm]	22
Dimension Y [mm]	11
Form factor	Module (general)
Voltage converter
Voltage converter type	Boost
Conversion	DC-DC
Switching method	Non-synchronous
Isolated	No
Output voltage type	Variable (discrete)
Constant current function	No
Minimum input voltage [V DC]	2.5
Maximum input voltage [V DC]	12
Minimum output voltage [V DC]	3.3
Maximum output voltage [V DC]	12
Maximum input current [A]	1.6
Maximum output current [A]	@3.7V in: 5V 1A, 8V 0.5A, 9V 0.45A, 12V 0.3A @5V in: 8V 0.7A, 9V 0.6A, 12V 0.5A
Connectors
Input voltage connector(s)	Through hole solder pin(s)
Output voltage connector(s)	Through hole solder pin(s)
Package contents
Package contents	5x DC-DC boost converter
