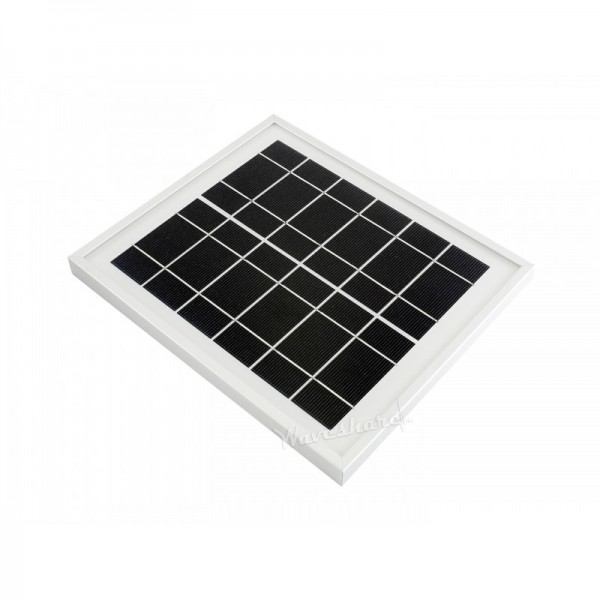

Solar Panel - 6V 833mA - 230x195x15mm - 3.5mm DC Jack

Solar Panel - 6V 833mA - 230x195x15mm - 3.5mm DC Jack
Solar Panel - 6V 833mA - 230x195x15mm - 3.5mm DC Jack
Solar Panel - 6V 833mA - 230x195x15mm - 3.5mm DC Jack
Solar Panel - 6V 833mA - 230x195x15mm - 3.5mm DC Jack
Solar Panel - 6V 833mA - 230x195x15mm - 3.5mm DC Jack
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004979
€17.00
Ex Tax: €14.05

This solar panel can be used to run your device on solar energy. The panel comes with a 3.5mm DC Jack making it ideal for use with the following solar energy module: Waveshare Solar Power Management Module

Note: The voltage from this solar panel is unregulated and can therefore produce any voltage between 0V and the open circuit voltage in the specifications below.

Please login or register to review

Reviews Over Solar Panel - 6V 833mA - 230x195x15mm - 3.5mm DC Jack

This product has 0 review(s) in total.

Specifications

General
Brand No brand
Features Solar panel
General physical appearance
Main color Black
Weight [g] 528
Dimension X [mm] 230
Dimension Y [mm] 195
Dimension Z [mm] 15
Material Toughened glass
Aluminum
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 5
Form factor Individual component
General electrical properties
Maximum power [W] 5
Solar panel
Cell type Monocrystalline silicon
Voltage at optimum load [V DC] 6
Open circuit voltage [V DC] 7.2
Maximum current at optimum load [mA] 833
Short circuit current [mA] 916
Bypass diode Yes
Connectors

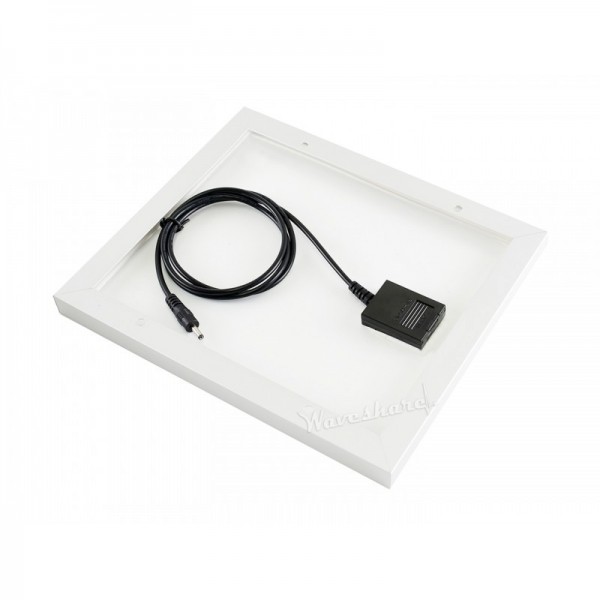

Solar panel connector(s) DC-jack 3.5/1.35mm male
Wire/cable
Wire/cable length [m] 1
(±0.05)
Package contents
Package contents 1x Solar panel

Product FAQ

The highest yield of a solar panel is only achievable under ideal conditions. This is when the sun shines perpendicular to the panel in the summer at the highest position of the sun when there are no clouds.
