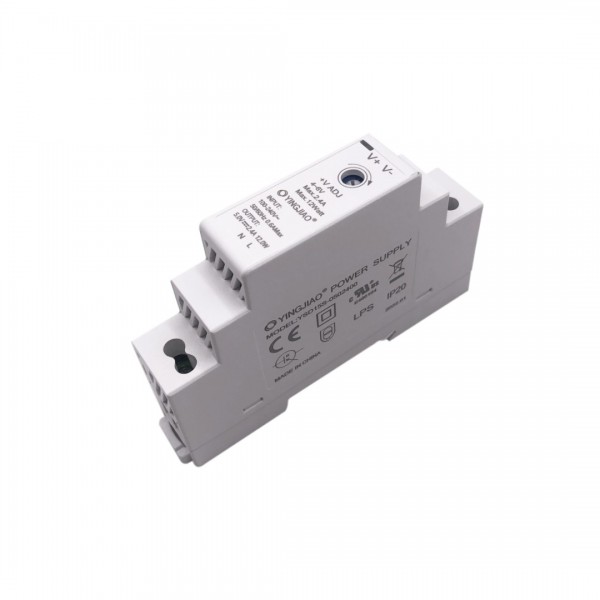

Yingjiao DIN Rail Power Supply - 5V 2.4A

This power supply is specially made to be placed on a DIN rail, so that this module can easily be placed in, for example, a meter cupboard.

Specifications:

• Input voltage: 85 - 264V AC
• Output voltage: 4 - 6V DC (adjustable with potentiometer)
• Maximum output current: 2.4A
• Output ripple: 80mVp-p
• Security Features:
  • Short circuit
  • Overload
  • Overvoltage (on the output)
• Operating temperature: -20 - 50°C
• Operating humidity: 20 ~ 90% (non-condensing)
• Suitable DIN rail type: EN60715 (TS35/7.5 and TS35/15)
• Dimensions: 90 x 18 x 58mm

Connections:

• L: Phase wire (brown wire)
• N: Neutral wire (light blue wire)
• V-: GND/ground/min of the power supply
• V+: Plus of the power supply

Package contents:

• 1x DIN Rail Power Supply - 5V 2.4A

Note: The power supply is enclosed in a plastic housing. All parts with ventilation holes must be kept clear such that the heat can be released.
