Name: Raspberry Pi Micro USB Power Supply - 5.1V 2.5A - Black - T5989DV-RS - T5989DVRS-909-8135
SKU: 005745
Price: 10.5 EUR
Availability: InStock

Raspberry Pi Micro USB Power Supply - 5.1V 2.5A - Black - T5989DV-RS

Availability: Directly available from warehouse in Eindhoven
SKU: 005745

Based on 0 review(s) - Write a review

€10.50

Ex Tax: €8.68

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

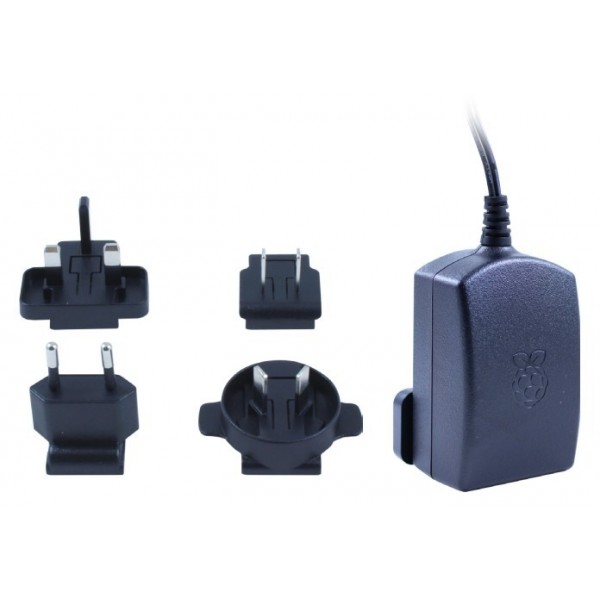

This official 5.1V power supply from Raspberry Pi is made for the Raspberry Pi 3, but is suitable for all RPi models with a micro USB connector. The power supply has 4 interchangeable adapters for EU, USA, UK or AU wall sockets.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Raspberry Pi Micro USB Power Supply - 5.1V 2.5A - Black - T5989DV-RS

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005745_T5989DV-RS-datasheet.pdf

Tags: Raspberry Pi Micro USB Power Supply - 5.1V 2.5A - Black - T5989DV-RS , T5989DVRS-909-8135 , 5V

Specifications

General
Brand	Raspberry Pi
Manufacturer model/SKU	T5989DV-RS
Norm conformity	RoHS CE
Minimum operating humidity [%R.H.]	20
Maximum operating humidity [%R.H.]	85
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Voltage converter
General physical appearance
Main color	Black
Weight [g]	115
Dimension X [mm]	73
Dimension Y [mm]	45
Dimension Z [mm]	39
Voltage converter
Voltage converter type	Buck
Conversion	AC-DC
Isolated	Yes
Soft start	Yes
Output voltage type	Fixed
Constant current function	No
Minimum input voltage [V AC]	90
Maximum input voltage [V AC]	264
Minimum output voltage [V DC]	5.1
Maximum output voltage [V DC]	5.1
Maximum input current [A]	0.5
Maximum output current [A]	2.5
Maximum output power [W]	12.75
Maximum output ripple [mVp-p]	120
Line regulation [%]	2
Load regulation [%]	5
Safety features	Short circuit Overcurrent (output) Over voltage (output)
Connectors
Input voltage connector(s)	Socket Type C male (CEE 7/16) Socket Type A male (US) Socket Type G male (UK) Socket Type I male (AU)
Output voltage connector(s)	Micro USB male
Wire/cable
Wire/cable length [m]	1.5
Package contents
Package contents	1x Power supply 4x Socket adapter (EU/UK/US/AU)
